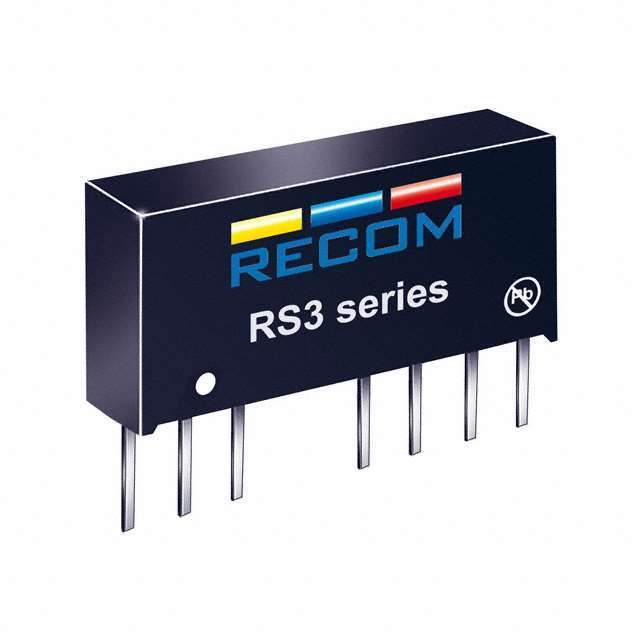

Same model may have multiple batches, images only for reference.

RS3-0505D

Name: RS3-0505D
Brand: Recom Power
SKU: 813914
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RS3-0505D
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 3W / 3 Watt SIP8 Isolated Single & Dual Output
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Recom Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Maximum Input Voltage	9V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Maximum)	300mA, 300mA
Power (Watts)	3W
Voltage - Isolation	1kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	80%
Mounting Style	Through Hole
Manufacturer Package	8-SIP Module, 7 Leads
Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features	Enable, Active Low
Manufacturer Pack Quantity	22
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	813917-RS3-0505D
Ultra Librarian 3D Model	Ultra Librarian RS3-0505D CAD Model

Alternative Products

Description

{"ProductId":752212,"FormattedDescription":"

The ECONOLINE RS3-0505D is an isolated module power supply.

Applications: ITE (Commercial)
Power Output: 3W
Voltage Isolation: 1kV
Outputs: Two
Voltage Output 1: 5V
Voltage Output 2: -5V
Efficiency: 80%
Package: 8-SIP module, 7 leads
Mounting Type: Through Hole
Operating Temperature: -40°C to 71°C
Features: SCP
