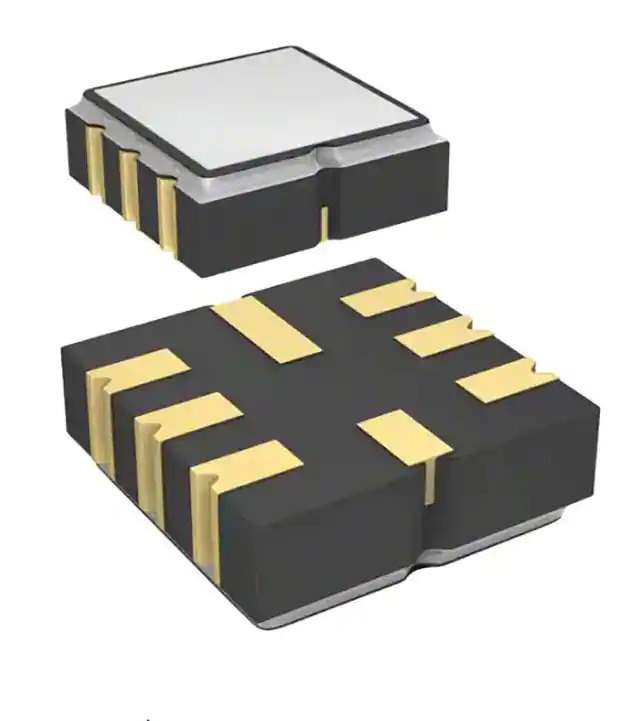

RF1402D Real Image
Same model may have multiple batches, images only for reference.

RF1402D

Part No RF1402D
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Description CRF,SM,315.000 MHZ
Datasheet
RF1402D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr RF Monolithics, Inc
Package Tape & Reel (TR)Tape & Reel (TR)Bag
Product Status Active
Frequency - Center 315MHz
Bandwidth 1MHz
Insertion Loss 2.7dB
Applications General Purpose
Mounting Type Surface Mount
Package / Case 8-SMD, No Lead
Height (Max) 0.055" (1.40mm)
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Base Product Number RF1402
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 659802-RF1402D
Ultra Librarian 3D Model Ultra Librarian RF1402D CAD Model

Description

The RF1402D is a SAW filter designed for general-purpose applications. It has a small package size of 0.150" L x 0.150" W (3.80mm x 3.80mm) and is surface mountable. The RF1402D is from RF Monolithics, Inc.

  • Package Size: 0.150" L x 0.150" W (3.80mm x 3.80mm)
  • Mounting Type: Surface Mountable
  • Insertion Loss: 2.7dB
  • Center Frequency: 315MHz
  • Bandwidth: 1MHz
  • Package: 8-SMD, no lead
  • Packaging: Tape and reel
  • Product Status: Active
  • Standard Package: 3,000 pieces
