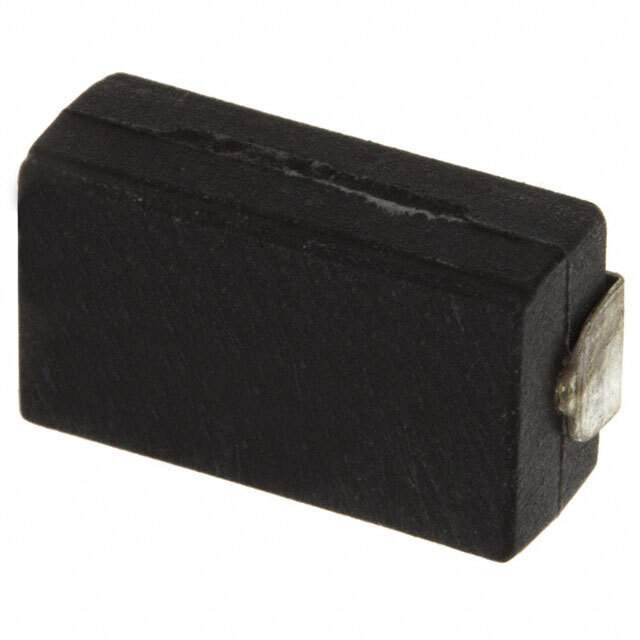

S4-680RF1 Real Image
Same model may have multiple batches, images only for reference.

S4-680RF1

Part No S4-680RF1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 680 OHM 1% 2W 4525  /  680 Ohms ±1% 2W Chip Resistor 4525 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S4-680RF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 680 Ohms
Tolerance ±1%
Power (Watts) 2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 4525 J-Lead
Dimension 0.449" L x 0.252" W (11.40mm x 6.40mm)
Height - Seated (Max) 0.197" (5.00mm)
Number of Terminations 2
Other Names S4-680RF1DKR,S-4-680FCT,S-4 680 OHM 1%,S-4-680FTR,S4680RF1,S4-680RF1TR,S-4-680FTR,S4-680RF1CT,S-4-680FCT,S-4-680FDKR,S-4-680FDKR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237155-S4-680RF1
Ultra Librarian 3D Model Ultra Librarian S4-680RF1 CAD Model

Description

The Riedon 1237155-S4-680RF1 is a wirewound chip resistor that has a resistance of 680 Ohms and a power rating of 2W.

  • Resistance: 680 Ohms
  • Power Rating: 2W
  • Temperature Coefficient: ±20ppm/°C
  • Tolerance: ±1%
  • Features: Pulse Withstanding, Moisture Resistant, Flame Proof
  • Height: 0.197" (5.00mm)
  • Package: 4525 J-Lead
  • Temperature Range: -55°C to 275°C
  • Package: Tape & Reel (TR)
  • Standard Package: 250 pcs
  • Applications: Power Management, Consumer Electronics, Portable Devices
