Products specifications

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 25V
Nominal Output Voltage (Min/Fixed) 3.3V
Output Current 1A
Operating Supply Current 2.5mA to 5mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 0.3V @ 500mA
Mounting SMD (SMT)

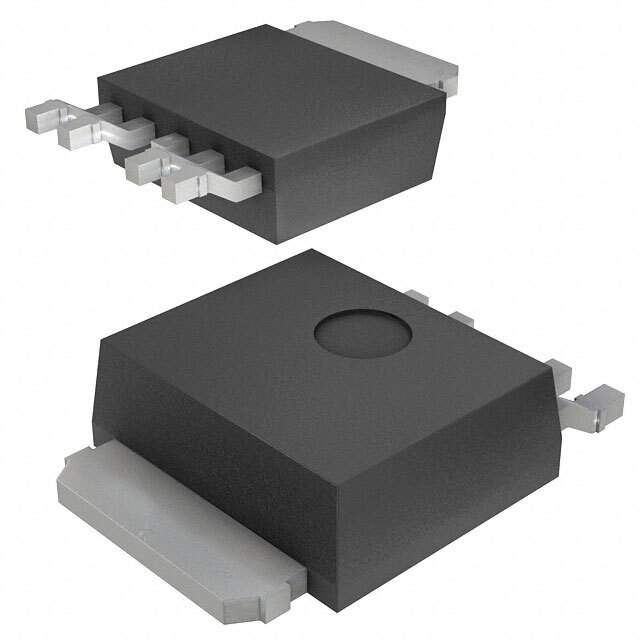

Case / Package TO-252-5
Win Source Part Number 000197-BA033CC0WFP-E2
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BA033CC0WFP-E2 CAD Model

Description

BA033CC0WFP-E2 Voltage Regulator

The BA033CC0WFP-E2 delivers dependable voltage regulation, ideal for demanding environments that require precise and stable power delivery. Its robust design makes it suitable for a wide range of applications.

  • Applications:
    • Telecommunication Systems
    • Medical Devices
    • Power Supply Units
  • Features and Benefits:
    • High thermal efficiency
    • Short-circuit protection
    • Reliable performance under varying conditions
  • Additional Details:
    • Output Voltage: 3.3V
    • Maximum Output Current: 1A
    • Package Type: TO-220WFP
