Products specifications

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Amplifier Type General Purpose
Number of Circuits 2
Slew Rate 10 V/μs
Gain Bandwidth Product (GBP) 4MHz
Current - Input Bias 100nA
Voltage - Input Offset 1.5mV
Operating Supply Current 4mA
Channel Output Current 30mA
Supply Voltage - Operating 3 V to 36 V, ±1.5 V to 18 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)

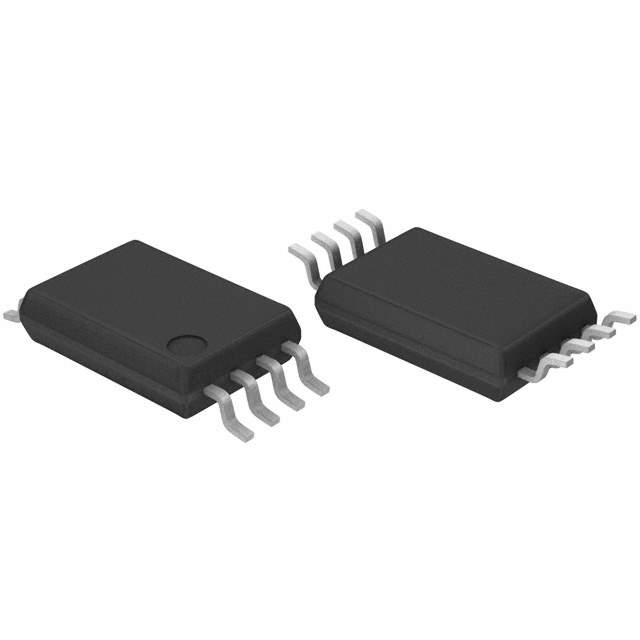

Case / Package 8-SSOPB
Win Source Part Number 1021961-BA3472FV-E2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BA3472FV-E2 CAD Model

Description

The Rohm Semiconductor BA3472FV-E2 is a dual-channel general-purpose amplifier with a slew rate of 10 V/μs.

  • Slew Rate: 10 V/μs
  • Input Bias Current: low, 100nA
  • Input Offset Voltage: low, 1.5mV
  • Application: designed for use in various applications, including audio amplifiers, signal amplifiers, and voltage followers.
  • Supply Voltage Range: 3 V to 36 V
  • Operating Supply Current: 4mA
  • Package: 8-SSOPB
  • Channel Output Current: up to 30mA
  • Gain Bandwidth Product (GBP): 4MHz
  • Supply and Demand Status: balanced.
