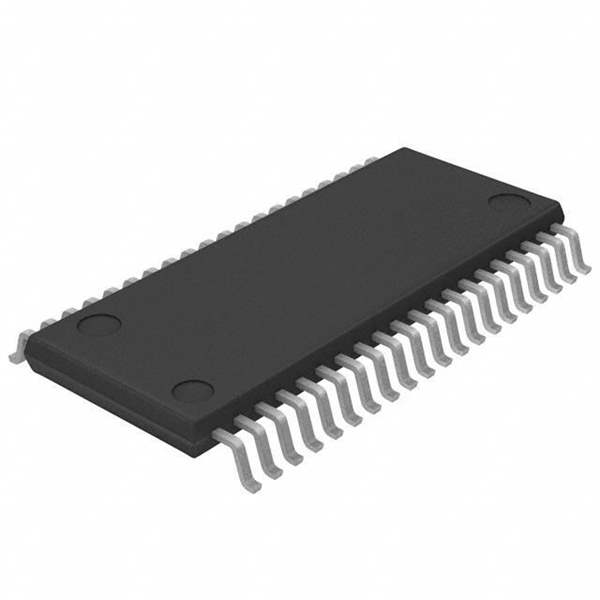

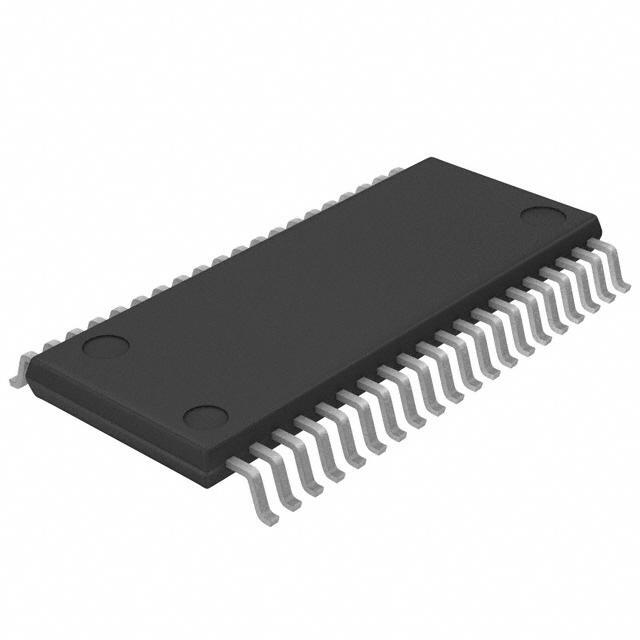

BD6384EFV-E2 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Power MOSFET
Applications General Purpose
Output Current 1.2A
Supply Voltage - Operating 3 V to 5.5 V
Voltage - Load 16 V to 28 V
Temperature Range - Operating -25°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 40-HTSSOP-B
Win Source Part Number 108201-BD6384EFV-E2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name BD6384
Introduction Date April 13, 2006
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian BD6384EFV-E2 CAD Model

Description

BD6384EFV-E2 Advanced Motor Controller

The BD6384EFV-E2 is an advanced motor driver IC tailored for precise and smooth control of stepper motors. Ideal for both industrial machines and consumer products, it stands out due to its efficient performance and reliability.

  • Applications/Projects:
    • Industrial Robots
    • Automated Door Openers
    • Medical Equipment
    • Telescope Drives
  • Features and Benefits:
    • Low power consumption for energy-efficient motor operation
    • Robust design with built-in safety features
    • Supports various motor drive modes to enhance versatility
  • Additional Details:
    • Highly durable with a compact footprint
    • Easy to configure and customize for specific needs
