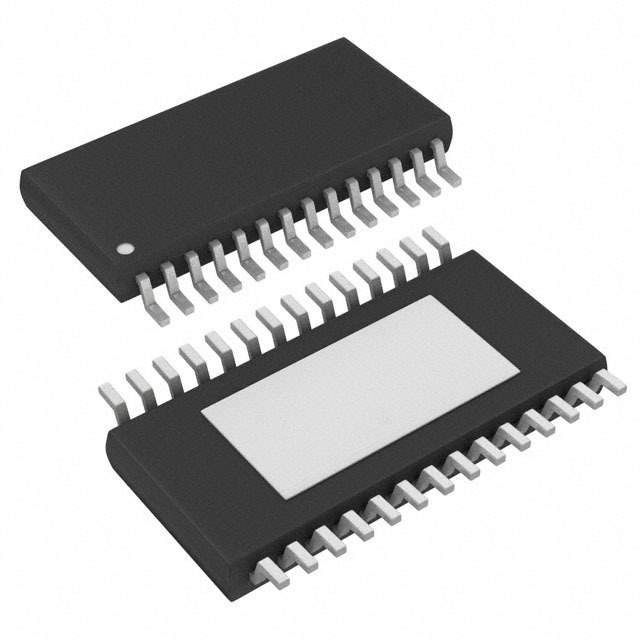

BD63860EFV-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology DMOS
Step Resolution 1, 1/2, 1/4, 1/8
Applications General Purpose
Output Current 1.7A
Supply Voltage - Operating 16 V to 28 V
Voltage - Load 16 V to 28 V
Temperature Range - Operating -25°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 28-HTSSOP-B
Win Source Part Number 099046-BD63860EFV-E2
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BD63860EFV-E2 CAD Model

Description

BD63860EFV-E2 Precision Motor Driver

The BD63860EFV-E2 is designed to deliver exceptional control over stepper motors with its precision engineering. This motor driver IC is perfect for applications requiring meticulous attention to motion quality and efficiency.

  • Applications/Projects:
    • Inspection Machines
    • Automated Sewing Machines
    • Precision Scanners
  • Features and Benefits:
    • Precision motor control with reduced noise and vibration
    • Supports a wide range of motor types and configurations
    • Integrated heat protection for reliable operation
  • Additional Details:
    • Minimized electromagnetic interference
    • RoHS compliant and environmentally friendly
