Products specifications

Manufacturer Rohm Semiconductor
Win Source Part Number 1152846-BD6989FVM
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BD6989FVM CAD Model

Description

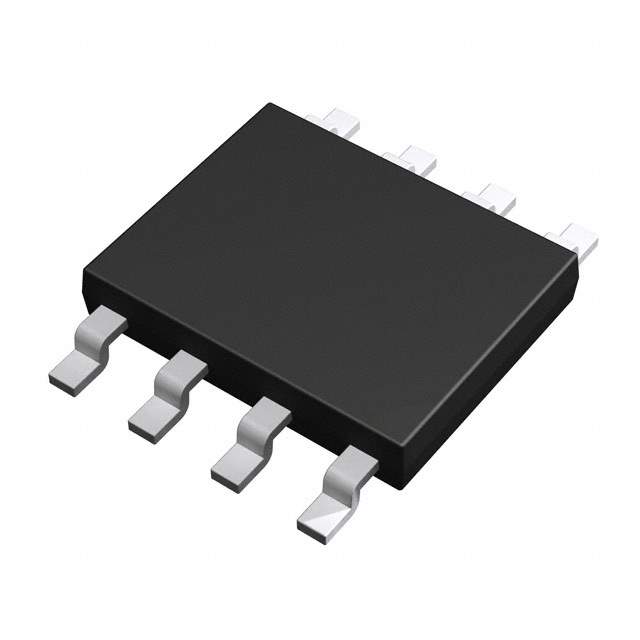

The BD6989FVM is a single-channel H-bridge driver IC from Rohm Semiconductor, designed for applications requiring precise and efficient control of small DC motors. This IC is particularly well-suited for driving motors in portable devices, consumer electronics, and industrial equipment, where space and power efficiency are critical considerations. The integrated protection features enhance reliability and prevent damage under various operating conditions.

Applications

  • Camera Lens Actuators: For auto-focus and zoom control in digital cameras and smartphone cameras.
  • Optical Disk Drives: For spindle motor and tray motor control in CD/DVD/Blu-ray drives.
  • Portable Scanners: For motor control in handheld scanners.
  • Small Robotics: For driving motors in small robots and robotic arms.
  • Gaming Controllers: For vibration feedback in gaming devices.

Features

  • Single-Channel H-Bridge Driver: Allows for bidirectional control of a single DC motor.
  • Low Saturation Voltage: Minimizes power loss and improves efficiency.
  • Built-in Overcurrent Protection (OCP): Prevents damage from excessive current draw.
  • Built-in Thermal Shutdown (TSD): Protects the IC from overheating.
  • PWM Control: Enables precise speed and torque control of the motor.
  • Brake Function: Provides a mechanism for quickly stopping the motor.

Benefits

  • Improved Power Efficiency: Low saturation voltage contributes to reduced power consumption and extended battery life.
  • Enhanced Reliability: Built-in protection circuits safeguard against common electrical faults and thermal issues.
  • Precise Motor Control: PWM control enables fine-grained adjustment of motor speed and torque.
  • Simplified Design: Fewer external components required due to integrated features.
  • Compact Footprint: Small package size allows for integration into space-constrained applications.
  • Cost-Effective Solution: Reduces the overall system cost by integrating multiple functions into a single IC.

Additional Details

The BD6989FVM typically operates from a supply voltage range of 1.8V to 5.5V. The output current capability is typically in the range of several hundred milliamps, suitable for driving small DC motors. The PWM control input allows for precise control of the motor speed and torque. The built-in protection circuits include overcurrent protection (OCP) and thermal shutdown (TSD), which protect the IC and the motor from damage in abnormal operating conditions. The device is available in a small surface-mount package, facilitating easy integration into modern electronic devices. Detailed specifications, including electrical characteristics, thermal resistance, and application circuit examples, can be found in the Rohm Semiconductor datasheet for this part. It is important to carefully review the datasheet and follow the recommended operating conditions to ensure optimal performance and prevent damage to the device.
