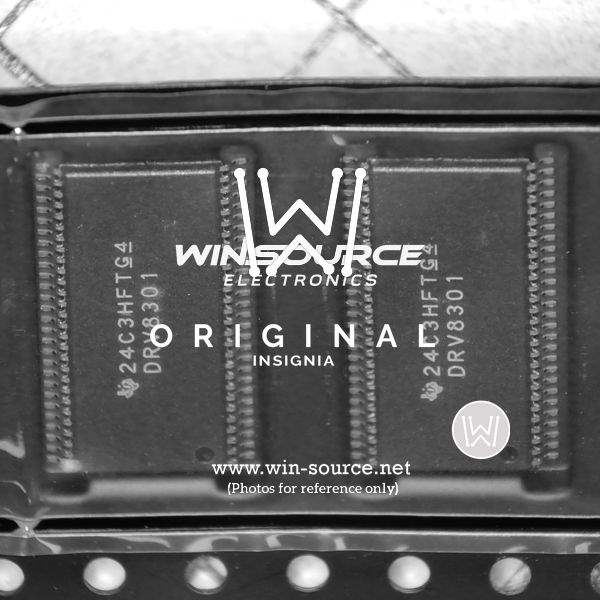

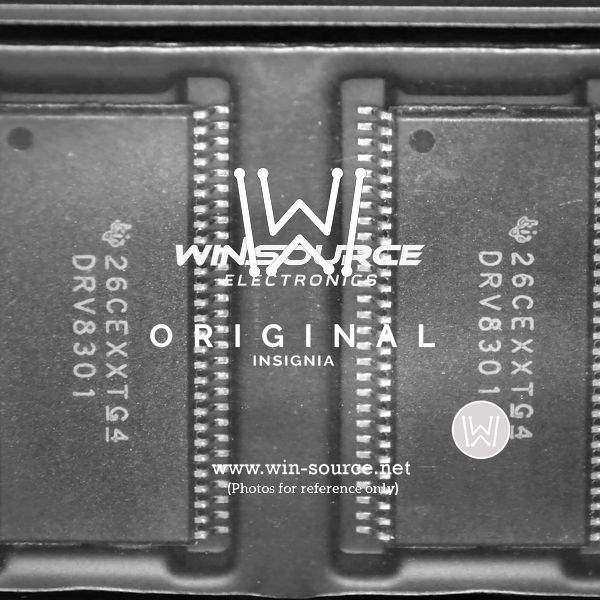

DRV8301DCAR Real Image DRV8301DCAR real image3493 DRV8301DCAR Real Image1 DRV8301DCAR Real Image2 DRV8301DCAR Real Image3 DRV8301DCAR Real Image4 DRV8301DCAR Real Image5
Same model may have multiple batches, images only for reference.
DRV8301DCAR Real Image DRV8301DCAR real image3493 DRV8301DCAR Real Image1 DRV8301DCAR Real Image2 DRV8301DCAR Real Image3 DRV8301DCAR Real Image4 DRV8301DCAR Real Image5
DRV8301DCAR Real Image DRV8301DCAR real image3493 DRV8301DCAR Real Image1 DRV8301DCAR Real Image2 DRV8301DCAR Real Image3 DRV8301DCAR Real Image4 DRV8301DCAR Real Image5
Same model may have multiple batches, images only for reference.

DRV8301DCAR

Part No DRV8301DCAR
Manufacturer Texas Instruments
Catalog PMIC - Motor Drivers, Controllers

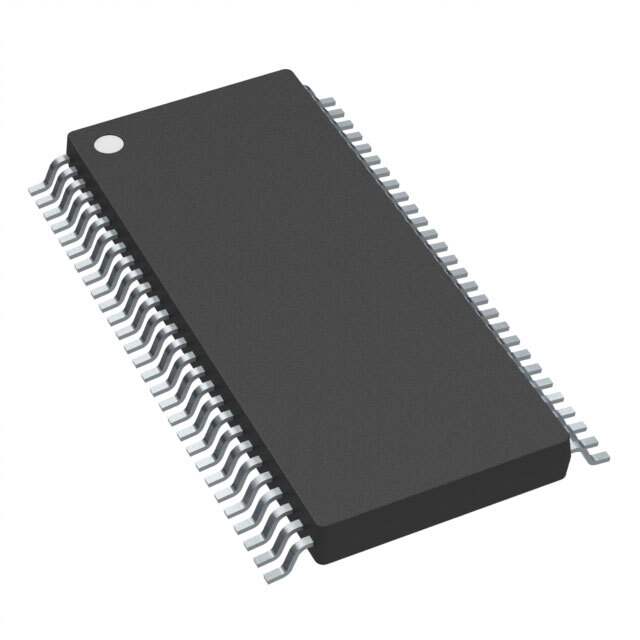

Description IC MOTOR CONTROLLER SPI 56HTSSOP / 3-Phase Brushless DC Motor Predriver 56-Pin HTSSOP EP T/R
Datasheet
DRV8301DCAR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushless DC (BLDC)
Purpose Controller - Commutation, Direction Management
Technology Power MOSFET
Applications General Purpose
Supply Voltage - Operating 6 V to 60 V
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package 56-HTSSOP
Win Source Part Number 108622-DRV8301DCAR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name DRV8301
Introduction Date August 01, 2011
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian DRV8301DCAR CAD Model

Description

DRV8301DCAR - Three-Phase Brushless DC Motor Driver

The DRV8301DCAR is a sophisticated motor driver capable of driving three-phase brushless DC motors with precision and reliability. It is suitable for high-performance motor control applications.

  • Application: Electric bikes, Drones, Industrial automation, Robotics

Features and Benefits

  • Efficient PWM interface
  • Integrated Current sense amplifiers
  • Support for up to 60V motor voltage
  • Overcurrent protection and fault diagnostics

This component offers designers maximum flexibility with configurable settings, making it a robust choice for varied motor control projects.
