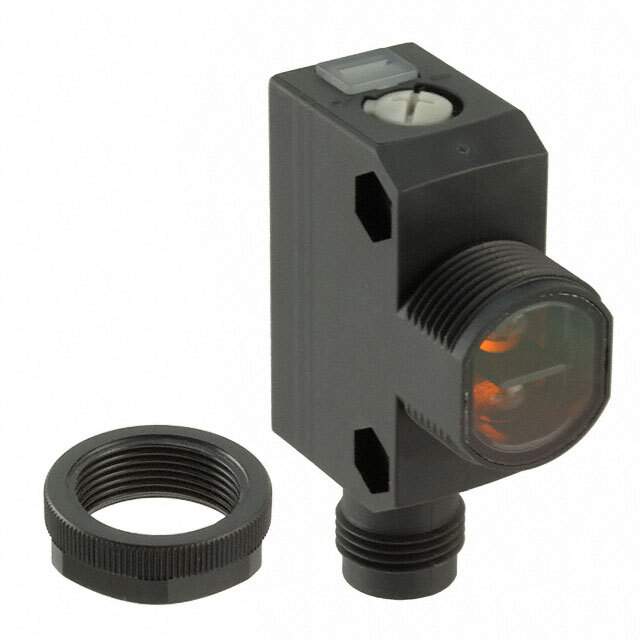

E3Z-FDN27 Real Image
Same model may have multiple batches, images only for reference.

E3Z-FDN27

Part No E3Z-FDN27
Manufacturer Omron
Catalog PMIC - Motor Drivers, Controllers
Description SENSOR REFLECTIVE 500MM NPN OPEN  /  Reflective, Diffuse Optical Sensor 19.685" (500mm) NPN - Open Collector
Datasheet
E3Z-FDN27 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photoelectric, Industrial
Mfr Omron Automation and Safety
Series E3Z
Package Bulk
Sensing Method Reflective, Diffuse
Sensing Distance 19.685" (500mm)
Voltage - Supply 10V ~ 30V
Response Time 500µs
Output Configuration NPN - Open Collector
Light Source Red LED
Connection Method Connector, M12, 4POS
Ingress Protection IP69K
Adjustment Type Single-Turn
Temperature Range - Operating -25°C ~ 55°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names E3ZFDN27,Z5476
Standard Package 1
Win Source Part Number 1055830-E3Z-FDN27
Ultra Librarian 3D Model Ultra Librarian E3Z-FDN27 CAD Model

Description

The E3Z-FDN27 is an optical sensor that belongs to the Optical Sensors - Photoelectric, Industrial category.

  • Manufacturer: It has been manufactured by Omron Automation and Safety
  • Packaging: and is available in bulk packaging with a standard package of 1 unit.
  • Ingress Protection: This product has an ingress protection of IP69K
  • Sensing Distance: and a sensing distance of 19.685" (500mm).
  • Output Configuration: The E3Z-FDN27 has an output configuration of NPN - Open Collector
  • Voltage Supply: and a voltage supply of 10V ~ 30V.
  • MSL Level: It has an MSL level of 1 (Unlimited)
  • ECCN: and an ECCN of EAR99.49.8000.
