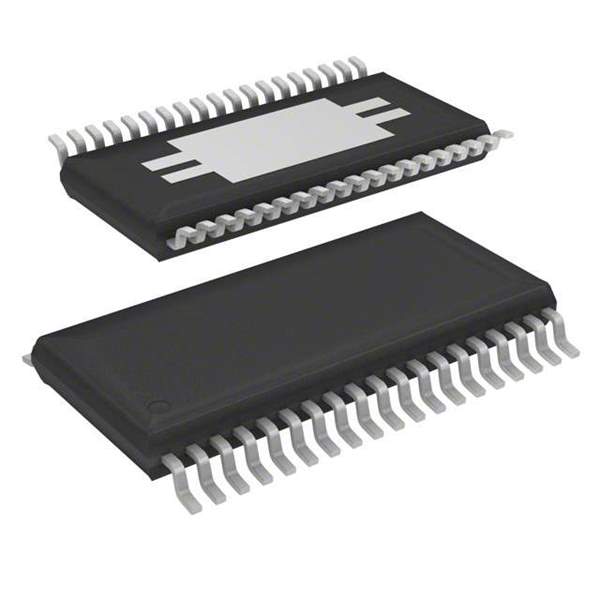

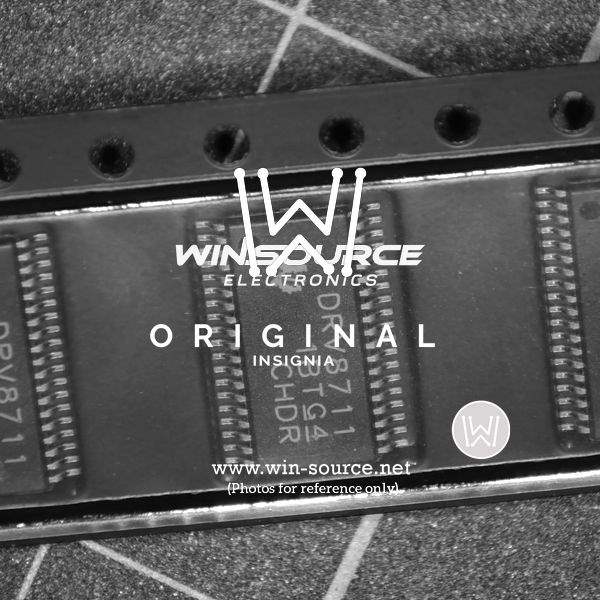

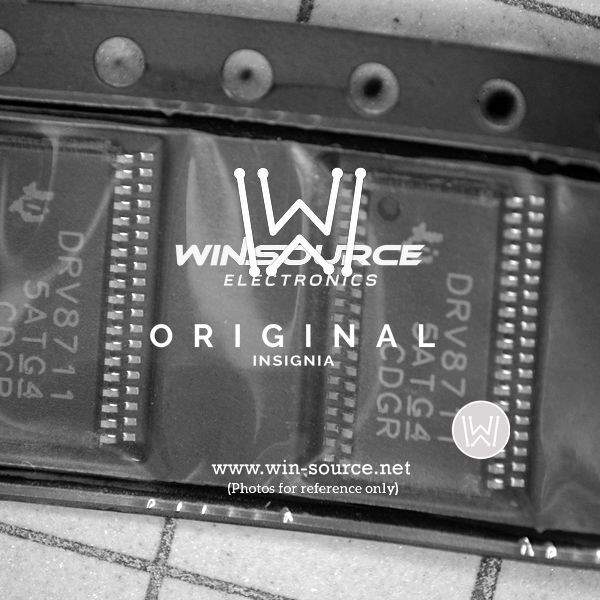

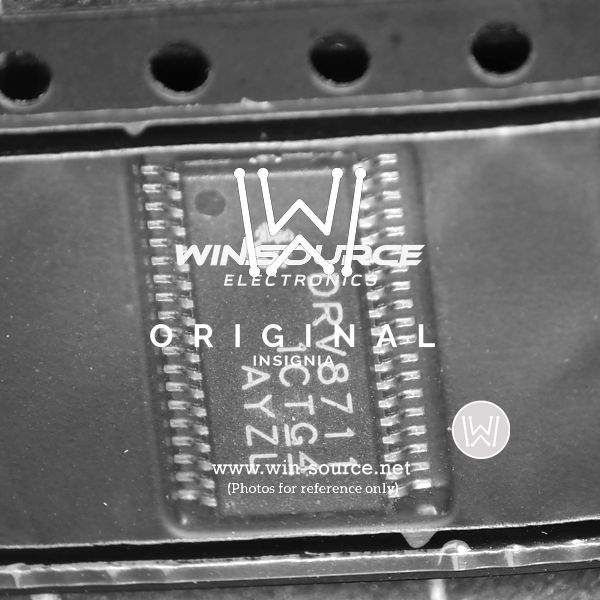

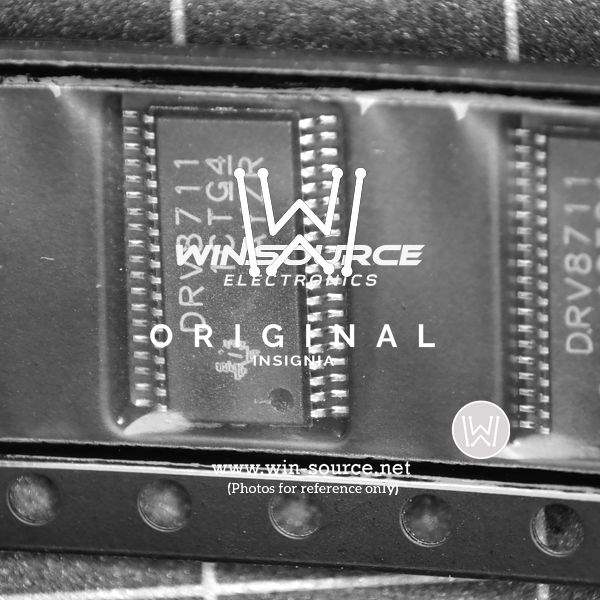

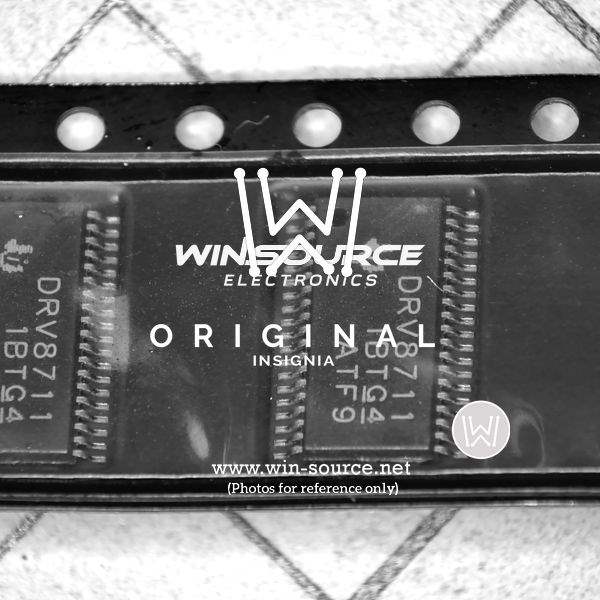

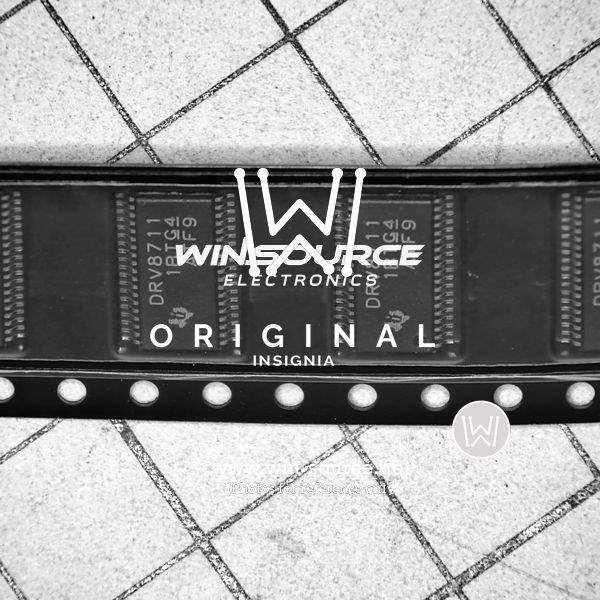

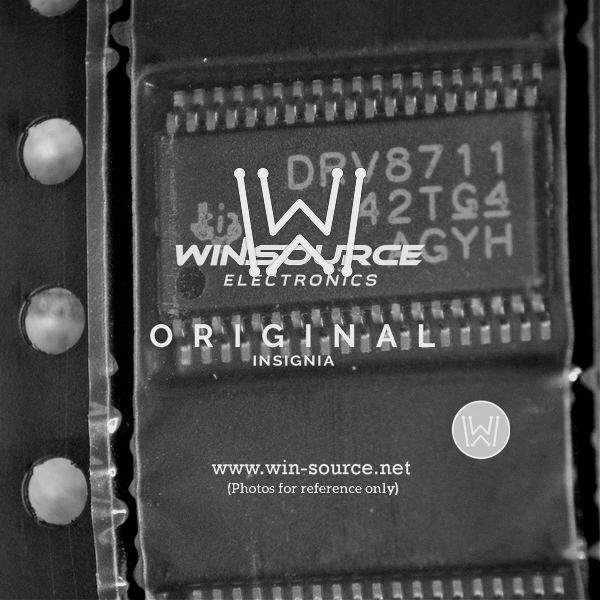

DRV8711DCPR Real Image DRV8711DCPR real image3500 DRV8711DCPR real image3501 DRV8711DCPR real image3502 DRV8711DCPR Real Image1 DRV8711DCPR Real Image2 DRV8711DCPR Real Image3 DRV8711DCPR Real Image4 DRV8711DCPR Real Image5 DRV8711DCPR Real Image6 DRV8711DCPR Real Image7 DRV8711DCPR Real Image8 DRV8711DCPR Real Image9 DRV8711DCPR Real Image10
Same model may have multiple batches, images only for reference.
DRV8711DCPR Real Image DRV8711DCPR real image3500 DRV8711DCPR real image3501 DRV8711DCPR real image3502 DRV8711DCPR Real Image1 DRV8711DCPR Real Image2 DRV8711DCPR Real Image3 DRV8711DCPR Real Image4 DRV8711DCPR Real Image5 DRV8711DCPR Real Image6 DRV8711DCPR Real Image7 DRV8711DCPR Real Image8 DRV8711DCPR Real Image9 DRV8711DCPR Real Image10
DRV8711DCPR Real Image DRV8711DCPR real image3500 DRV8711DCPR real image3501 DRV8711DCPR real image3502 DRV8711DCPR Real Image1 DRV8711DCPR Real Image2 DRV8711DCPR Real Image3 DRV8711DCPR Real Image4 DRV8711DCPR Real Image5 DRV8711DCPR Real Image6 DRV8711DCPR Real Image7 DRV8711DCPR Real Image8 DRV8711DCPR Real Image9 DRV8711DCPR Real Image10
Same model may have multiple batches, images only for reference.

DRV8711DCPR

Part No DRV8711DCPR
Manufacturer Texas Instruments
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR CONTROLLER SPI 38HTSSOP
Datasheet
DRV8711DCPR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Purpose Controller - Commutation, Direction Management
Step Resolution 1 to 1/256
Applications General Purpose
Supply Voltage - Operating 8 V to 52 V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)

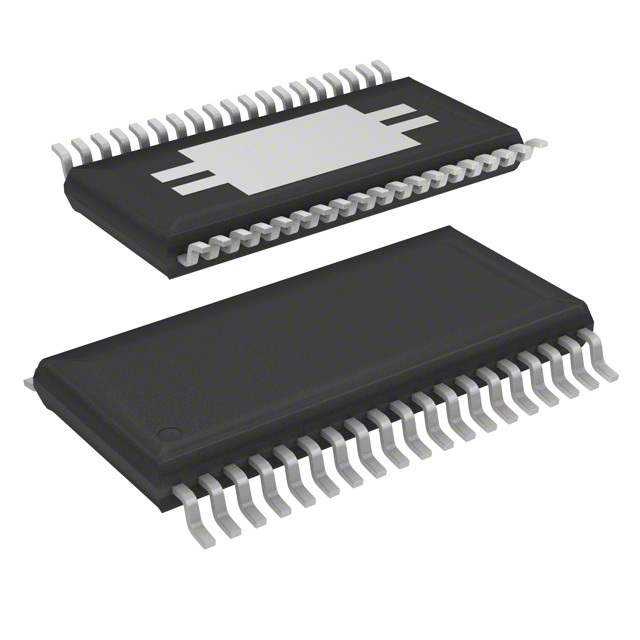

Case / Package 38-HTSSOP
Win Source Part Number 014624-DRV8711DCPR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name DRV8711
Introduction Date June 29, 2013
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian DRV8711DCPR CAD Model

Description

DRV8711DCPR Stepper Motor Controller

The DRV8711DCPR is a high-performance stepper motor controller with microstepping capabilities, suitable for a wide range of precision motor control applications.

Features and Benefits

  • Microstepping up to 1/256-step to reduce system resonances
  • Wide supply voltage range: 8V to 52V
  • Adjustable current regulation
  • Built-in stall detection and overcurrent protection

Applications and Projects

  • 3D printers
  • Industrial automation
  • CNC machines
  • Robotics

This stepper motor controller offers an intuitive SPI interface for ease of integration, paired with an extensive set of configuration options to optimize motor performance.
