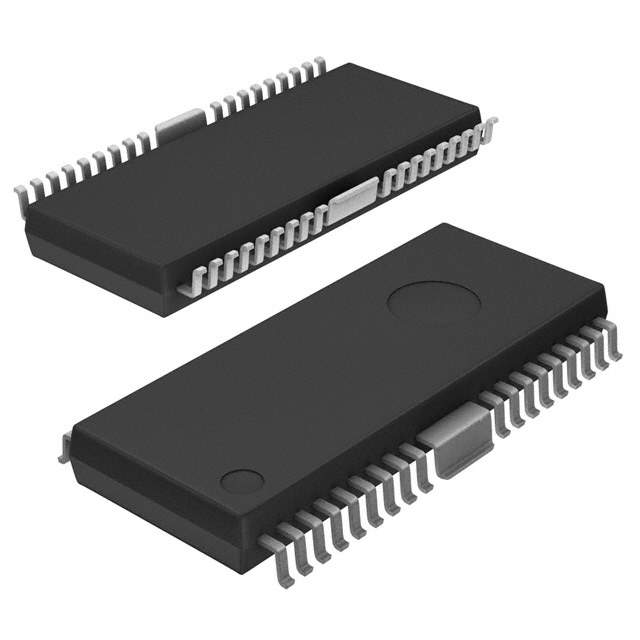

BD7960FM-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Power MOSFET, IGBT
Applications Media Player
Supply Voltage - Operating 4.5 V to 14 V
Voltage - Load 4.5 V to 14 V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 36-HSOP
Win Source Part Number 049460-BD7960FM-E2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BD7960FM-E2 CAD Model

Description

BD7960FM-E2 Motor Driver IC

The BD7960FM-E2 is a versatile motor driver IC with enhanced features for better performance in demanding applications. It is designed to provide exceptional control and reliability.

  • Applications: Robotics, industrial equipment, gaming consoles.
  • Features and Benefits:
    • Energy Efficient: Reduces power consumption without compromising performance.
    • Enhanced Protection: Equipped with short-circuit and over-temperature protections.
    • Easy Integration: Compatible with a wide range of control systems.
  • Additional Details:
    • Supply Voltage Range: 6V to 36V.
    • Operating Temperature: -30°C to +85°C.
    • Package Type: HSOP-M28.
