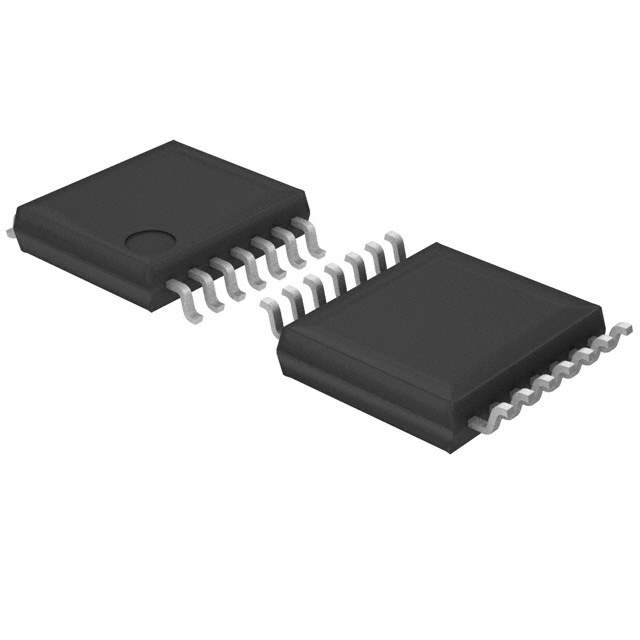

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Logic Type NAND Gate
Number of Circuits 4
Number of Inputs 2
Supply Voltage - Operating 3 V to 16 V
Current - Quiescent (Max) 4μA
Current - Output High, Low 1.2mA, 3mA
Logic Level - Low 1.5 V to 4 V
Logic Level - High 3.5 V to 11 V
Max Propagation Delay @ V, Max CL 40ns @ 15V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 14-SSOP
Dimension 14-LSSOP (0.173", 4.40mm Width)
Win Source Part Number 012260-BU4011BFV-E2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BU4011BFV-E2 CAD Model

Description

BU4011BFV-E2: Surface-Mount Quad 2-Input NAND Gate

The BU4011BFV-E2 is a surface-mount version of the quad 2-input NAND gate, designed to offer space-efficient solutions for modern electronics.

  • Applications:
    • Compact Circuit Design
    • Mobile Devices
    • Wearable Technology
  • Features and Benefits:
    • Space-Saving SMT Design: Ideal for compact and mobile applications.
    • Fast Logic Processing: Supports high-speed circuit operations.
    • Reliable Performance: Offers stable operation over a wide temperature range.

    Its surface-mount capability makes the BU4011BFV-E2 an excellent choice for compact and efficient electronic designs.
