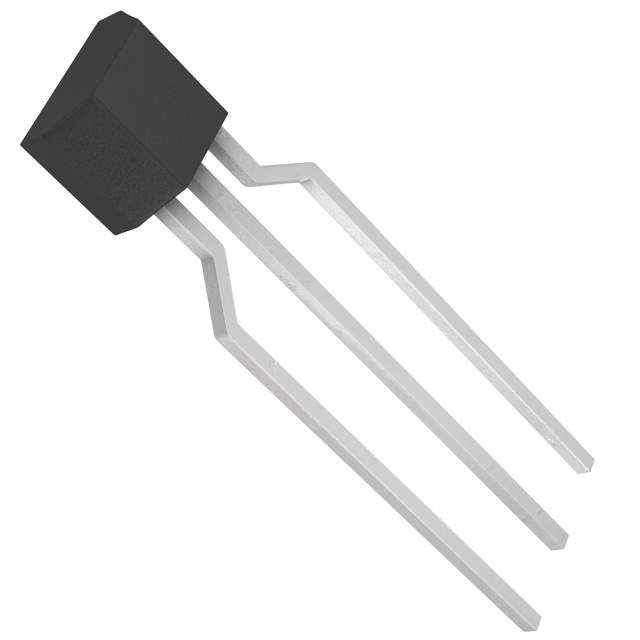

The DTC144ESA is a silicon NPN epitaxial planar transistor with built-in resistors, manufactured by Rohm Semiconductor. As a pre-biased transistor, it simplifies circuit design by integrating resistors, reducing the need for external components and board space. It is well-suited for various low-current switching and amplification applications.

Applications

• Digital Circuits: Commonly used as an inverter or driver in digital logic circuits.
• Switching Circuits: Ideal for low-current switching applications.
• Portable Electronics: Found in devices such as mobile phones, tablets, and other portable devices due to its small size and efficiency.
• Interface Circuits: Can be utilized as an interface between different voltage levels.
• Load Switches: Used for turning small loads on and off.

Features

• Integrated Resistors: Includes built-in base and base-emitter resistors, eliminating the need for external resistors.
• Compact Package: Available in small packages like SOT-346, making it suitable for space-constrained applications.
• NPN Configuration: Operates as an NPN transistor.
• Low Saturation Voltage: Provides a low saturation voltage for efficient switching.
• High Input Resistance: Offers a high input resistance through the integrated resistor.

Benefits

• Reduced Component Count: Integrated resistors minimize external components, saving board space and reducing assembly costs.
• Simplified Design: Streamlines circuit design by removing the necessity to calculate and select resistor values.
• Improved Reliability: Fewer components can improve circuit reliability.
• Space Saving: Small package enables applications in compact devices.
• Cost-Effective: Integration of resistors reduces the overall system cost.

Additional Details

The DTC144ESA typically has an input resistor (R1) of 47 kΩ and a resistor between base and emitter (R2) of 47 kΩ. Designed for low-power and low-voltage applications, it's crucial to consider the collector current (Ic), base voltage (Vbe), and collector-emitter voltage (Vce) ratings. Always refer to the datasheet for detailed electrical characteristics and operating conditions.

The SOT-346 package (or similar) is typically employed for these transistors due to its small size and suitability for surface mounting on printed circuit boards. Designed to support automated assembly processes, it improves manufacturing efficiency.
