Same model may have multiple batches, images only for reference.

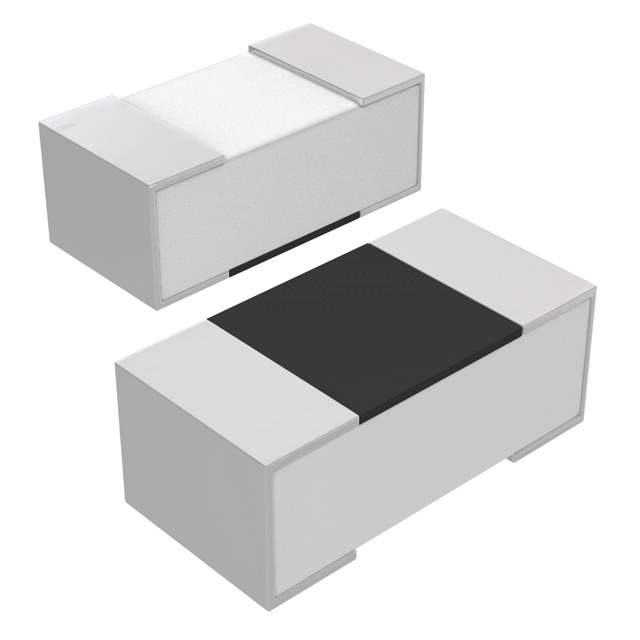

MCR006YZPF15R0 Real Image
Same model may have multiple batches, images only for reference.

MCR006YZPF15R0

Part No MCR006YZPF15R0
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 15 OHM 1% 1/20W 0201  /  15 Ohms ±1% 0.05W, 1/20W Chip Resistor 0201 (0603 Metric) Thick Film
Datasheet
MCR006YZPF15R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Rohm Semiconductor
Series MCR
Package Tape & Reel
Resistance 15 Ohms
Tolerance ±1%
Power (Watts) 0.05W, 1/20W
Composition Thick Film
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) 0.010" (0.26mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names RHM15ABDKR,RHM15ABCT,RHM15ABTR
Standard Package 15,000
Win Source Part Number 963386-MCR006YZPF15R0
Ultra Librarian 3D Model Ultra Librarian MCR006YZPF15R0 CAD Model

Description

This chip resistor is a surface-mount resistor that is part of the MCR series. The product has a part number of 963386-MCR006YZPF15R0 and is available in tape and reel packaging.

  • Height: 0.010"
  • Standard Package: 15,000
  • Tolerance: ±1%
  • Temperature Coefficient: ±250ppm/°C
  • Power Rating: 0.05W or 1/20W
  • Composition: Thick Film
  • Terminations: 2
  • Resistance: 15 Ohms
  • Package/Case Size: 0201 (0603 Metric)
  • Manufacturer: Rohm Semiconductor
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8533.21.0030
