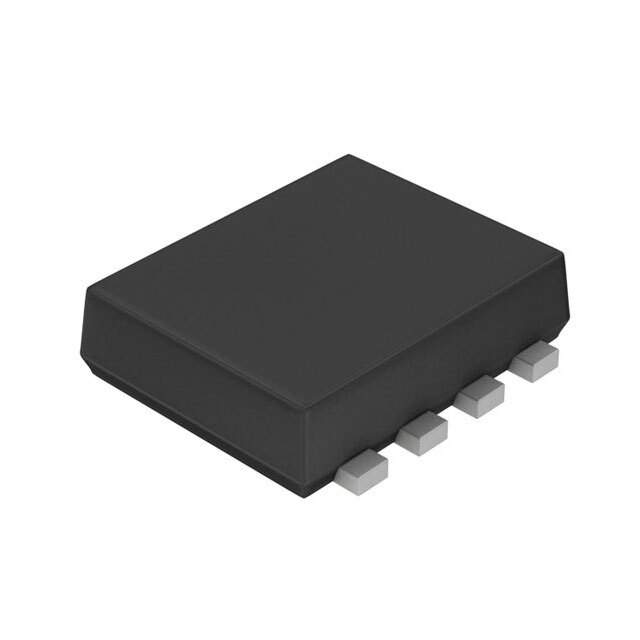

QS8K2TR Real Image
Same model may have multiple batches, images only for reference.

QS8K2TR

Part No QS8K2TR
Manufacturer Rohm Semiconductor
Catalog FETs - Arrays
Description MOSFET 2N-CH 30V 3.5A TSMT8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) at 25°C 3.5A
Rds On (Maximum) at Id, Vgs 54mOhm at 3.5A, 4.5V
Vgs(th) (Maximum) at Id 1.5V at 1mA
Gate Charge (Qg) (Maximum) at Vgs 4.6nC at 4.5V
Input Capacitance (Ciss) (Maximum) at Vds 285pF at 10V
Power - Max 1.25W
Temperature Range - Operating 150°C
Mounting Style SMD
Manufacturer Package 8-SMD, Flat Lead
Supplier Device Package TSMT8
Part Number Series *K2
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805349-QS8K2TR
Ultra Librarian 3D Model Ultra Librarian QS8K2TR CAD Model

Description

The QS8K2TR is a dual 2 N-channel logic level gate FET from Rohm Semiconductor.

  • Drain to Source Voltage: 30V
  • Maximum Power: 1.25W
  • Gate Charge: 4.6nC @ 4.5V
  • Input Capacitance: 285pF @ 10V
  • Current Continuous Drain: 3.5A @ 25°C
  • Vgs(th): 1.5V @ 1mA
  • Maximum Rds On: 54mOhm @ 3.5A and 4.5Vgs
