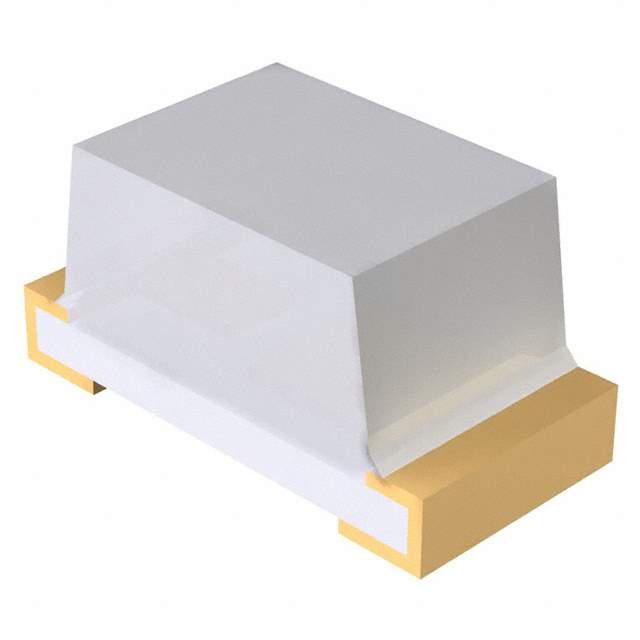

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Color Orange
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 3.15mcd
Lens Style/Size Rectangle with Flat Top, 1.20mm x 0.80mm
Forward Voltage 1.8V
Current - Test 2mA
Mounting SMD (SMT)
Wavelength - Dominant 605nm
Case / Package 0603 (1608 Metric)
Height (Max) 0.90mm
Win Source Part Number 047084-SML-311DTT86J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SML-311DTT86J CAD Model

Description

The Rohm Semiconductor SML-311DTT86J is an optoelectronic electronic component that is manufactured by Rohm Semiconductor.

  • Win Source Part Number: 047084-SML-311DTT86J
  • Forward Voltage: 1.8V
  • Viewing Angle: -
  • Lens Style/Size: a rectangle with a flat top, 1.20mm x 0.80mm
  • Current Test: 2mA
  • Wavelength-Dominant: 605nm
  • Height (Max): 0.90mm
  • Case/Package: 0603 (1608 Metric)
