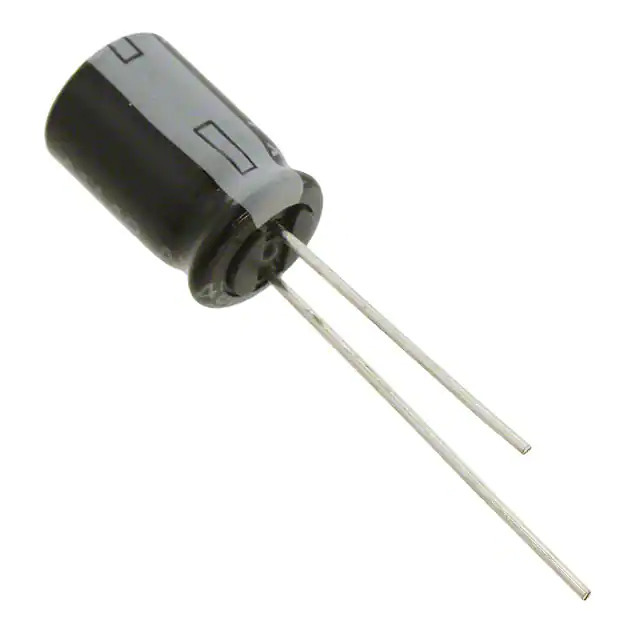

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Product Status Active
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 210 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357682-100PX33MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 100PX33MEFC8X11.5 CAD Model

Description

The Rubycon 1357682-100PX33MEFC8X11.5 is an aluminum electrolytic capacitor with a capacitance of 33 µF and a voltage rating of 100 V.

  • Series: PX
  • Applications: general-purpose
  • Temperature Range: -55°C to 105°C
  • Lifetime: 1000 hours @ 105°C
  • Package: radial, can
  • Mounting Type: through hole
  • Lead Spacing: 3.50mm
  • Size/Dimension: 8.00mm diameter and 13.00mm in height
  • Ripple Current (Low Frequency): 140 mA @ 120 Hz
  • Ripple Current (High Frequency): 210 mA @ 10 kHz
  • REACH: unaffected
  • ECCN: EAR99
  • Polarization: polar
