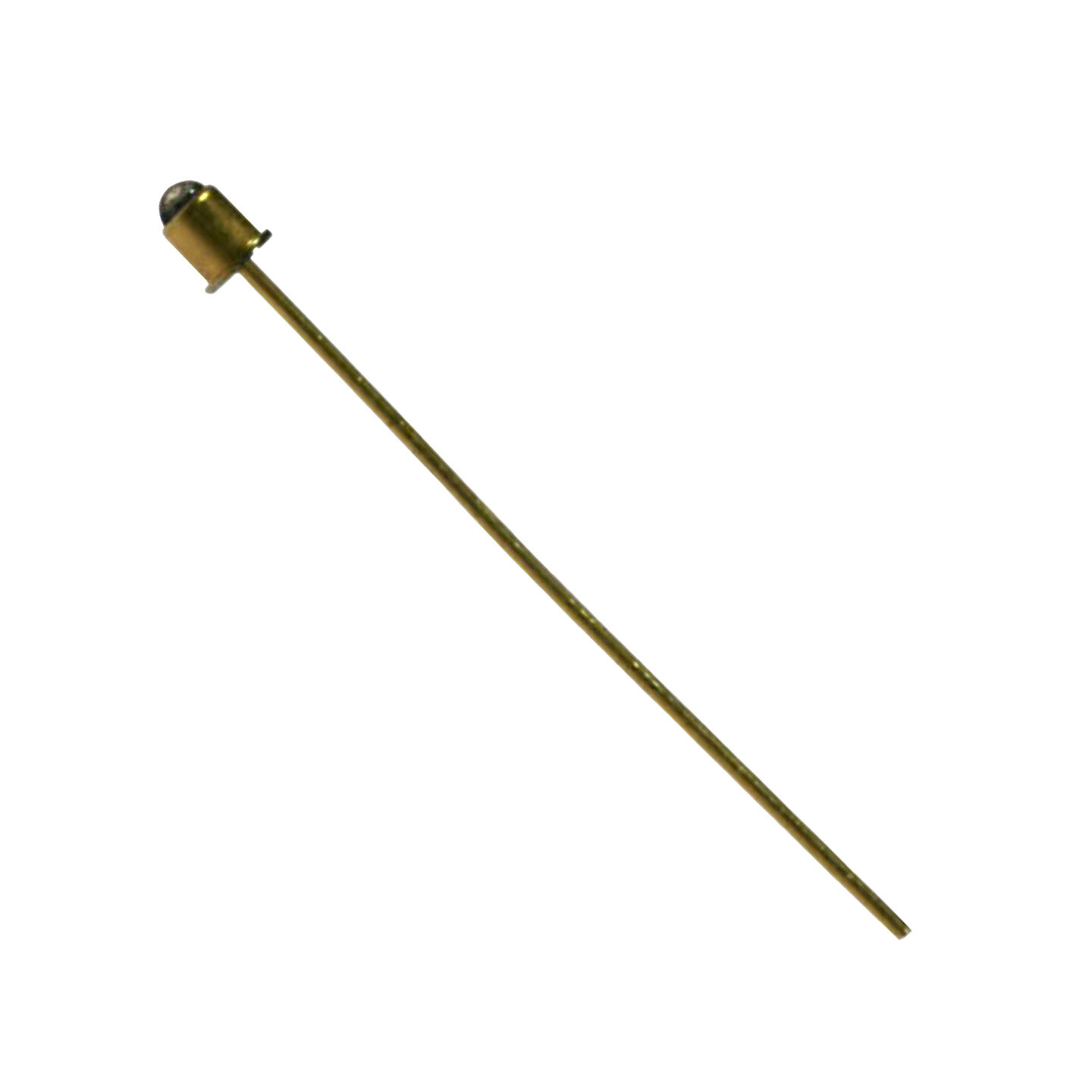

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TT Electronics/Optek Technology
Packaging Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 1.2mW/cm² @ 50mA
Wavelength 890nm
Voltage - Forward (Vf) (Typ) 1.8V
Viewing Angle 24°
Orientation Top View
Temperature Range - Operating -65°C ~ 125°C (TA)
Mounting Type Through Hole
Package / Case Radial
Base Product Number OP215
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1480226-OP215A
Ultra Librarian 3D Model Ultra Librarian OP215A CAD Model
