Same model may have multiple batches, images only for reference.

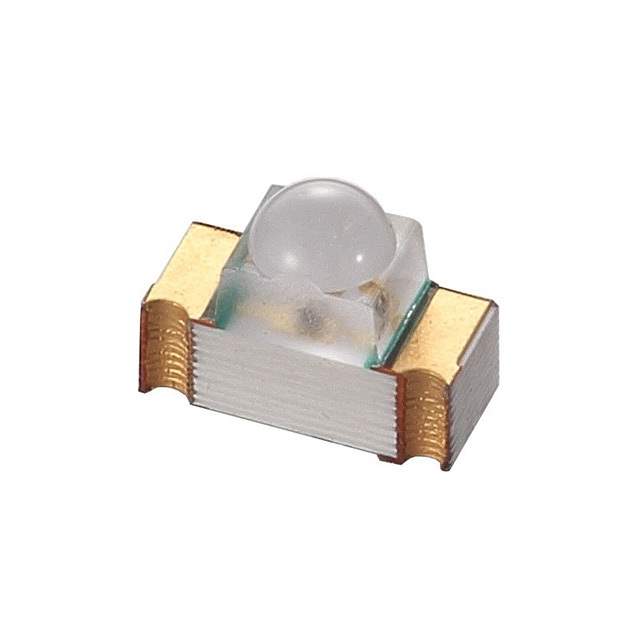

EAISV3024A0 Real Image
Same model may have multiple batches, images only for reference.

EAISV3024A0

Part No EAISV3024A0
Manufacturer Everlight Electronics Co Ltd
Catalog Infrared, UV, Visible Emitters
Description SMD IR EMITTER / Infrared (IR) Emitter 940nm 1.25V 65mA 2mW/sr @ 20mA 45° 2-SMD, No Lead
Datasheet
EAISV3024A0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr Everlight Electronics Co Ltd
Package Tape & Reel
Type Infrared (IR)
Current - DC Forward (If) (Max) 65mA
Radiant Intensity (Ie) Min @ If 2mW/sr @ 20mA
Wavelength 940nm
Voltage - Forward (Vf) (Typ) 1.25V
Viewing Angle 45°
Orientation Side View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Base Product Number EAISV3024
Standard Package 1,500
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1348567-EAISV3024A0
Ultra Librarian 3D Model Ultra Librarian EAISV3024A0 CAD Model

Description

The Everlight Electronics Co Ltd product with Win Source Part Number 1348567-EAISV3024A0 is an infrared (IR) LED emitter component.

  • Manufacturer: Everlight Electronics Co Ltd
  • Win Source Part Number: 1348567-EAISV3024A0
  • Viewing Angle: 45°
  • Wavelength: 940nm
  • Packaging: Tape & Reel
  • Package/Case: 2-SMD, No Lead
  • Radiant Intensity (Ie) min @ If: 2mW/sr @ 20mA
