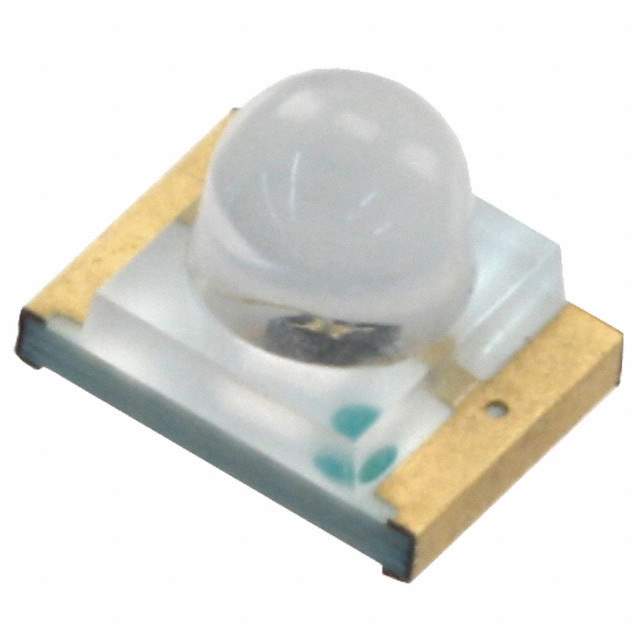

IR42-21C/TR8 Real Image1 IR42-21C/TR8 Real Image2
Same model may have multiple batches, images only for reference.
IR42-21C/TR8 Real Image1 IR42-21C/TR8 Real Image2
IR42-21C/TR8 Real Image1 IR42-21C/TR8 Real Image2
Same model may have multiple batches, images only for reference.

IR42-21C/TR8

Part No IR42-21C/TR8
Manufacturer Everlight Electronics Co Ltd
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 65MA SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Everlight Electronics Co Ltd
Packaging Reel - TR
Status Active
Type Infrared (IR)
Continuous forward current- Max 65mA
Radiant Intensity (Ie) Min @ If 1mW/sr @ 20mA
Wavelength 940nm
Forward Voltage 1.2V
Viewing Angle 30°
Orientation Top View
Temperature Range - Operating -25°C to 85°C (TA)
Mounting SMD (SMT)
Dimension 2-SMD, No Lead
Win Source Part Number 1046349-IR42-21C/TR8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IR42-21C/TR8 CAD Model

Description

The Everlight Electronics Co Ltd 1046349-IR42-21C/TR8 is an infrared (IR) surface-mount LED with a top view orientation.

  • Manufacturer: Everlight Electronics Co Ltd
  • LED Type: Infrared (IR)
  • Mounting Type: Surface Mount
  • View Orientation: Top View
  • Forward Voltage: 1.2V
  • Viewing Angle: 30 degrees
  • Wavelength: 940nm
  • Radiant Intensity: 1mW/sr @ 20mA (min @ If)
  • Continuous Forward Current-Max: 65mA
  • Packaging: Reel - TR
  • Category: Optoelectronics
  • Status: Active
  • Temperature Range: -25 degrees Celsius to 85 degrees Celsius (TA)
  • Dimension: 2-SMD, no lead
