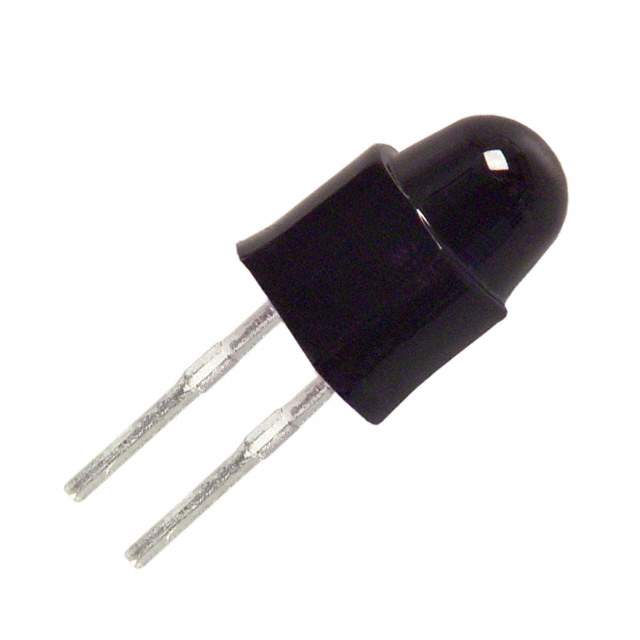

The SFH4505 is a silicon NPN phototransistor designed for infrared (IR) detection. Manufactured by Infineon Technologies, this device is sensitive to infrared radiation and converts it into an electrical current. It is commonly used in various IR-based applications.

Applications:

• Remote Controls: Used in remote control receivers for TVs, DVD players, and other electronic devices.
• Light Barriers: Employed in light barrier systems for object detection and security.
• Proximity Sensors: Integrated into proximity sensors for detecting nearby objects.
• Optical Switches: Utilized in optical switches for controlling electrical circuits.
• IR Data Transmission: Found in IR data transmission systems for wireless communication.

Features:

• High Sensitivity: Highly sensitive to infrared radiation.
• NPN Phototransistor: Silicon NPN phototransistor structure.
• Wide Viewing Angle: Offers a wide viewing angle for effective IR detection.
• Fast Switching Speed: Provides fast switching speed for high-speed applications.
• Compact Package: Available in a compact package for space-constrained designs.

Benefits:

• Reliable IR Detection: Provides reliable IR detection for various applications.
• Easy Integration: Easy to integrate into existing circuits.
• Cost-Effective: Offers a cost-effective solution for IR detection.
• Long Lifetime: Designed for long-term reliability.
• Versatile: Suitable for a wide range of IR-based applications.

The SFH4505 operates within a specified collector-emitter voltage range and collector current. Its spectral sensitivity is optimized for IR wavelengths commonly used in remote control systems. The device's output current is proportional to the intensity of the incident IR radiation. It is typically packaged in a through-hole package for easy mounting on PCBs. External resistors are often used to adjust the sensitivity and output voltage. Proper shielding may be required to minimize interference from ambient light sources. The phototransistor's performance is affected by temperature, so careful consideration should be given to thermal management in certain applications. The SFH4505 conforms to RoHS standards, ensuring environmental compliance. Its robust construction and reliable performance make it a popular choice for many IR sensing applications.
