Part No 0787160004
Manufacturer Molex, LLC
Catalog Pluggable Connectors

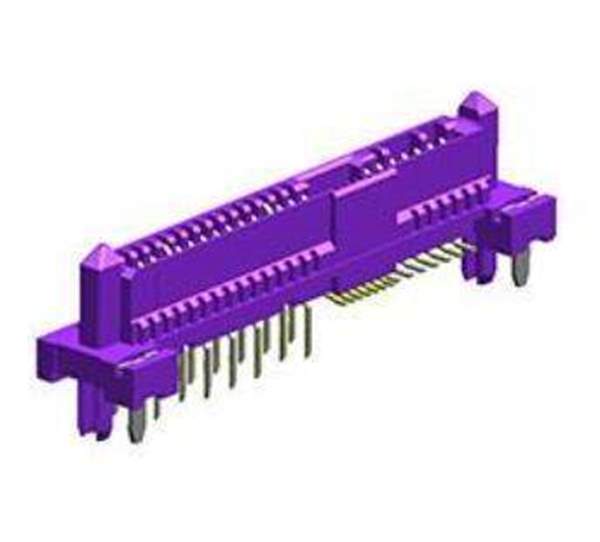

Description CONN SAS RCPT 29POS SLD SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207379-0787160004
Manufacturer Molex
Category Connectors, Interconnects -Pluggable Connectors- Pluggable Connector Assemblies
Series 78716
Package Tape & Reel (TR)
Product Status Active
Connector Type SAS
Number of Positions 29
Mounting Type Surface Mount, Through Hole
Features Board Guide, Mating Guide
Ultra Librarian 3D Model Ultra Librarian 0787160004 CAD Model

Description

The recommended PC board thickness shall be 2.34mm. High performance and low loss PC board material is recommended.

The solder pads for the connector assembly must be precisely located to ensure proper placement and optimum performance of the connector assembly. Refer to the applicable Sales Drawing for the recommended solder pad pattern, dimensions and tolerances.
