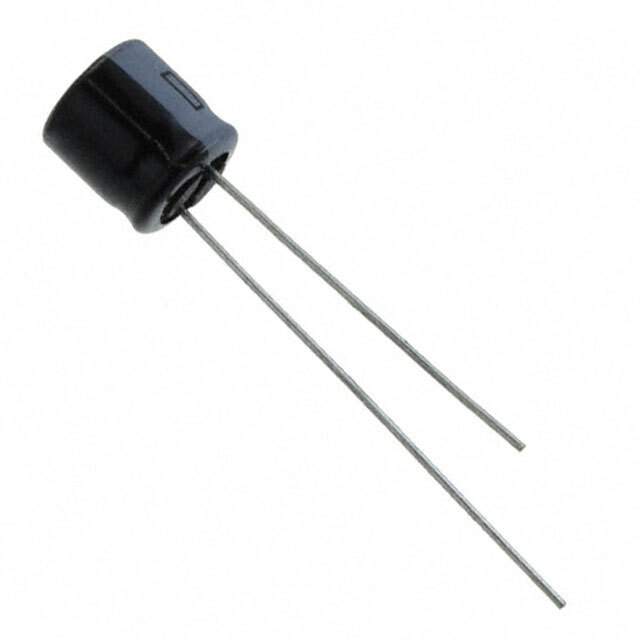

10MS7220MEFC8X7 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MS7
Package Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 165 mA @ 120 Hz
Ripple Current @ High Frequency 198 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 5,000
Win Source Part Number 1113578-10MS7220MEFC8X7
Ultra Librarian 3D Model Ultra Librarian 10MS7220MEFC8X7 CAD Model

Description

The Rubycon 1011192 capacitor is an aluminum electrolytic capacitor with a capacitance of 220 µF and a voltage rating of 10 V.

  • Tolerance: ±20%
  • Ripple Current: 165 mA @ 120 Hz and 198 mA @ 10 kHz
  • Lifetime: 1000 Hrs @ 85°C
  • Package: Radial can
  • Application: General purpose applications
  • Height: 0.315" (8.00mm)
  • Diameter: 0.315" (8.00mm)
