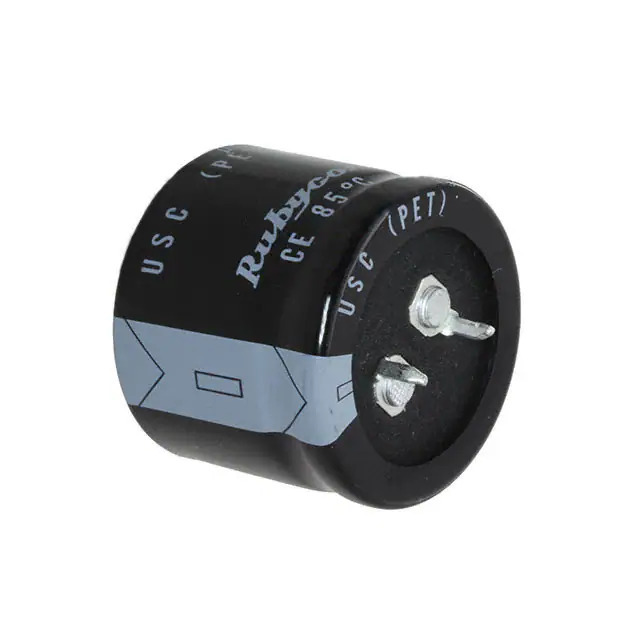

250USC680MEFCSN30X30 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series USC
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 250 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.71 A @ 120 Hz
Ripple Current @ High Frequency 4.065 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.260" (32.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360677-250USC680MEFCSN30X30
Ultra Librarian 3D Model Ultra Librarian 250USC680MEFCSN30X30 CAD Model

Description

The USC series aluminum electrolytic capacitor from Rubycon is a reliable component suitable for general-purpose applications.

  • Capacitance: 680 μF
  • Voltage Rating: 250 V
  • Package: Radial, Can - Snap-In
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 85°C
  • Lifetime: 3000 hours @ 85°C
  • Ripple Current (Low Frequency): 2.71 A @ 120 Hz
  • Ripple Current (High Frequency): 4.065 A @ 10 kHz
  • Polarized: Yes
  • Lead Spacing: 10.00mm
