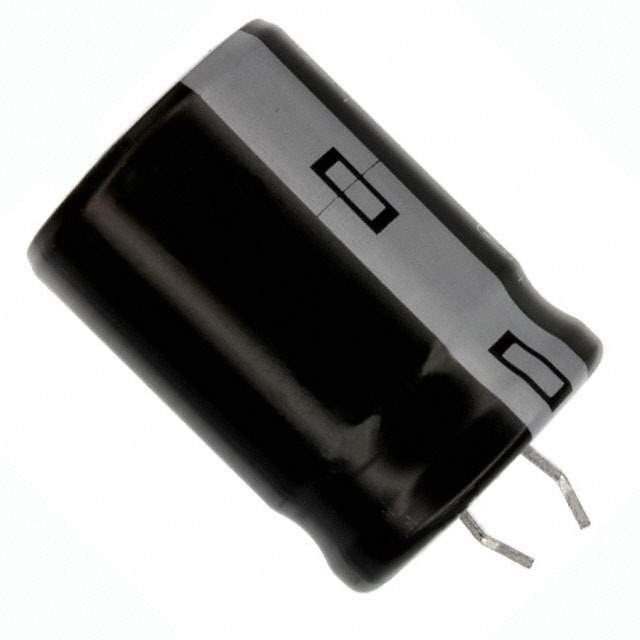

Same model may have multiple batches, images only for reference.

ECO-S1JA222BA

Name: ECO-S1JA222BA
Brand: Panasonic
SKU: 1340852
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	ECO-S1JA222BA
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 63V SNAP / 2200 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 128mOhm @ 120Hz 3000 Hrs @ 105°C
Datasheet	ECO-S1JA222BA Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	TS-HA
Package	Bulk
Product Status	Obsolete
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	128mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2 A @ 120 Hz
Ripple Current @ High Frequency	2.3 A @ 100 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Base Product Number	ECO-S1
Standard Package	200
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1340852-ECO-S1JA222BA
Ultra Librarian 3D Model	Ultra Librarian ECO-S1JA222BA CAD Model

Alternative Products

Description

The Panasonic Electronic Components TS-HA series aluminum electrolytic capacitors are designed for general-purpose applications.

Manufacturer: Panasonic Electronic Components
Series: TS-HA
Type: Aluminum Electrolytic Capacitors
Application: General-Purpose
Capacitance: 2200 µF
Voltage Rating: 63 V
ESR: 128mOhm @ 120Hz
Lifetime: 3000 hours @ 105°C
Mounting Type: Through-Hole
Package: Radial, Can - Snap-In
Diameter: 0.866" (22.00mm)
Height: 1.457" (37.00mm)
Packaging: Bulk
Standard Package: 200
