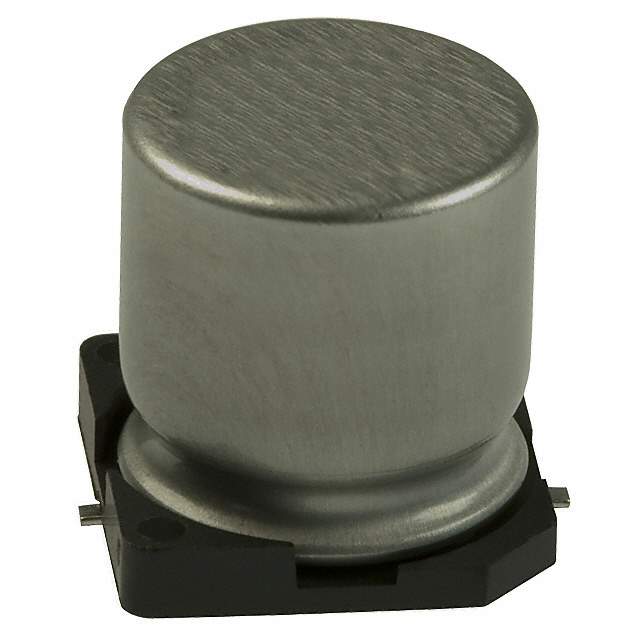

EEV-FK1A222Q Real Image
Same model may have multiple batches, images only for reference.

EEV-FK1A222Q

Part No EEV-FK1A222Q
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 10V SMD / 2200 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FK
Package Tape & Reel
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 825 mA @ 120 Hz
Ripple Current @ High Frequency 1.1 A @ 100 kHz
Impedance 60 mOhms
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.551" (14.00mm)
Surface Mount Land Size 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEV-FK
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1341688-EEV-FK1A222Q
Ultra Librarian 3D Model Ultra Librarian EEV-FK1A222Q CAD Model

Description

The EEV-FK1A222Q is an aluminum electrolytic capacitor with a capacitance of 2200 μF and a voltage rating of 10 V. It is manufactured by Panasonic Electronic Components.

  • Capacitance: 2200 μF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • Standard Package: 200
  • Impedance: 60 mOhms
  • Lifetime: 5000 Hrs @ 105°C
  • Series: FK
  • Application: Automotive
  • Surface Mount Land Size: 0.531" L x 0.531" W (13.50mm x 13.50mm)
  • Package: Radial, Can - SMD
  • Polarized: Yes
  • Ripple Current: 825 mA @ 120 Hz and 1.1 A @ 100 kHz
  • AEC-Q200: Rated
