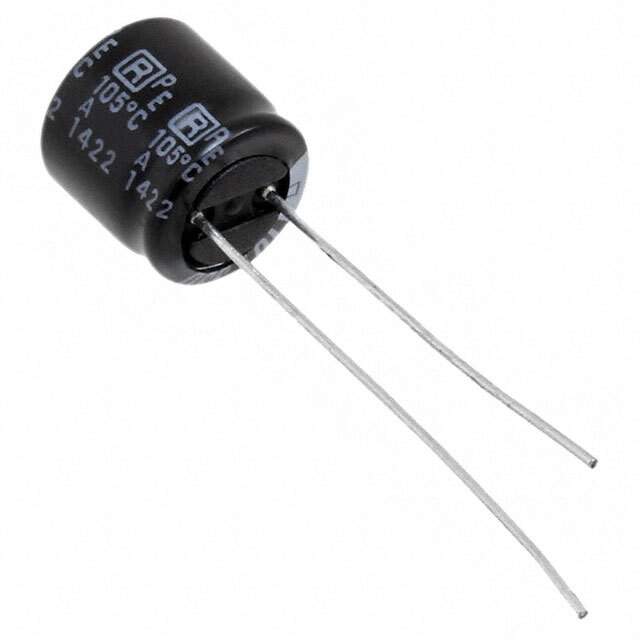

25ML220MEFC8X9 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series ML
Packaging Bulk
Capacitance 220μF
Tolerance ±20%
Voltage Rating DC 25V
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 190mA @ 120Hz
Ripple Current - High Frequency 228mA @ 10kHz
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.413" (10.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777796-25ML220MEFC8X9
Popularity Medium
Supply and Demand Status Limited
Family Name ML
Introduction Date October 14, 2005
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 25ML220MEFC8X9 CAD Model

Description

The Rubycon 777796-25ML220MEFC8X9 is a radial, can type capacitor that is designed for general electronic applications.

  • Capacitance: 220μF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Lead Spacing: 0.138" (3.50mm)
  • Ripple Current: 190mA @ 120Hz and 228mA @ 10kHz
  • Lifetime: 5000 hours @ 105°C
  • Polarization: Polarized
  • Height: 0.413" (10.50mm)
  • Diameter: 0.315" (8.00mm)
  • Series: ML
  • Supply and Demand Status: limited
  • Estimated EOL Date: 2027
