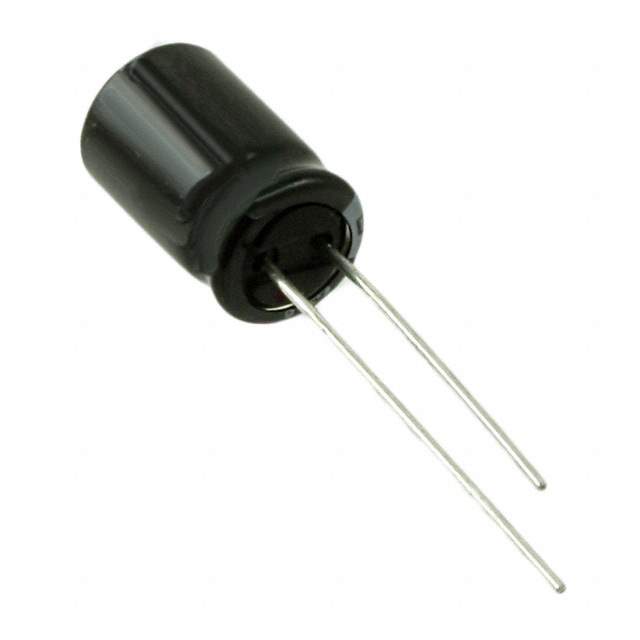

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 135 mA @ 120 Hz
Ripple Current @ High Frequency 162 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-1224
Standard Package 3,000
Win Source Part Number 1328554-25PX100MEFC5X11
Ultra Librarian 3D Model Ultra Librarian 25PX100MEFC5X11 CAD Model

Description

This aluminum electrolytic capacitor from Rubycon is designed for use in general purpose applications.

  • Manufacturer: Rubycon
  • Packaging: Bulk
  • Size/Dimension: 0.197 inches diameter (5.00mm)
  • Height Seated (Max): 0.492 inches (12.50mm)
  • Standard Package: 3,000 units
  • Mounting: Through Hole
  • Capacitance: 100 microfarads
  • Tolerance: +/-20%
  • Voltage Rated: 25V
  • Lead Spacing: 0.079 inches (2.00mm)
  • ESR: -
  • Lifetime @ Temperature: 1000 hours @ 105 degrees C
  • Polarization: Polar
  • Temperature Range for Operating: -55 to 105 degrees C
  • Case/Package: Radial, can
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8532.22.0020
  • Other Part Numbers: 1189-1224
  • ROHS3 Compliant: Yes
  • Ripple Current @ Low Frequency: 135 mA @ 120 Hz
  • Ripple Current @ High Frequency: 162 mA @ 10 kHz
