Same model may have multiple batches, images only for reference.

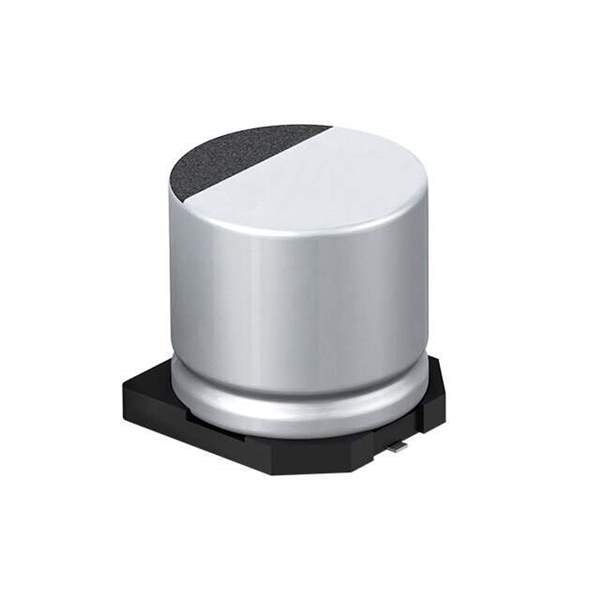

EEE-FK1E560SR Real Image
Same model may have multiple batches, images only for reference.

EEE-FK1E560SR

Part No EEE-FK1E560SR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 56UF 20% 25V SMD  /  56 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 700mOhm @ 100kHz 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FKS
Package Tape & Reel
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 700mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 104 mA @ 120 Hz
Ripple Current @ High Frequency 160 mA @ 100 kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-FK
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names PCE5158DKR,EEEFK1E560SR,PCE5158TR,PCE5158CT
Standard Package 1,000
Win Source Part Number 1056865-EEE-FK1E560SR
Ultra Librarian 3D Model Ultra Librarian EEE-FK1E560SR CAD Model

Description

The Panasonic Electronic Components 1056865-EEE-FK1E560SR is an aluminum electrolytic capacitor that is used in various automotive applications.

  • Manufacturer: Panasonic Electronic Components
  • Automotive Grade: AEC-Q200
  • Supply and Demand: Balanced
