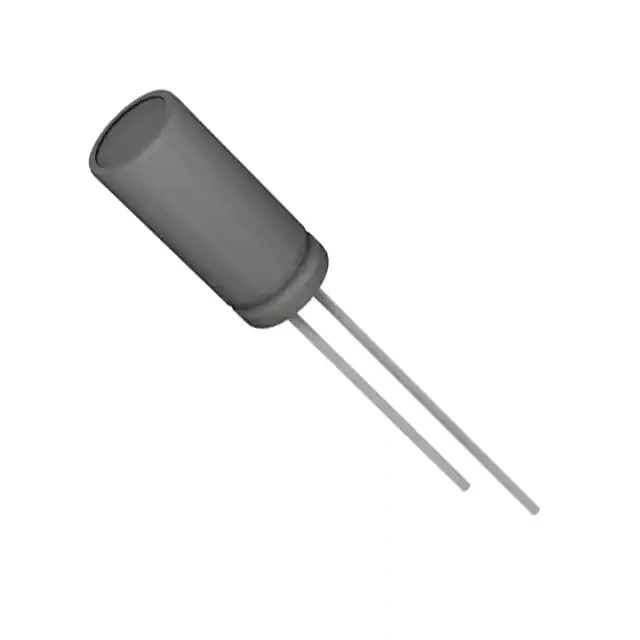

Products specifications

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Bulk
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 137.5 mA @ 120 Hz
Ripple Current @ High Frequency 250 mA @ 100 kHz
Impedance 400 mOhms
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357880-25YXJ47M5X11
Ultra Librarian 3D Model Ultra Librarian 25YXJ47M5X11 CAD Model

Description

The Rubycon YXJ series aluminum electrolytic capacitor is a high-quality component suitable for a wide range of applications from Rubycon.

  • Capacitance: 47 μF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Operating Temperature: -40°C ~ 105°C
  • Series: YXJ
  • Package / Case: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 2.00mm
  • Size / Dimension: 5.00mm Diameter
  • Height: 12.50mm
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 137.5 mA @ 120 Hz
  • Ripple Current @ High Frequency: 250 mA @ 100 kHz
  • Applications: General Purpose
