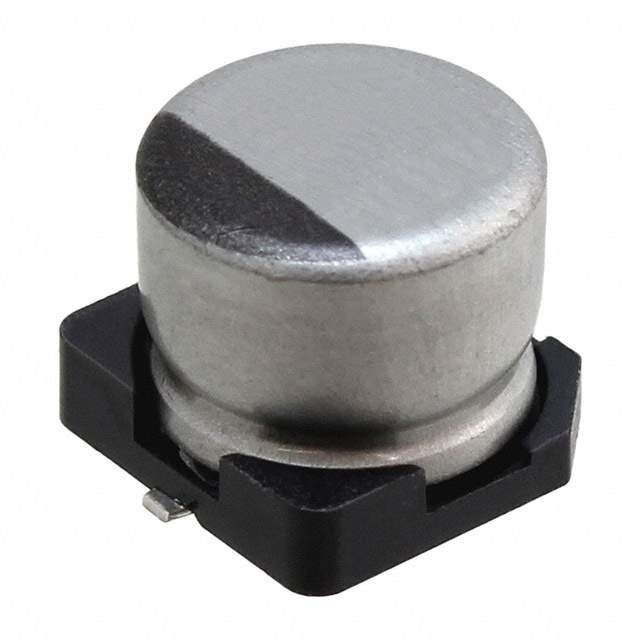

UWF1C470MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWF1C470MCL1GB

Part No UWF1C470MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 16V SMD  /  47 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWF
Package Tape & Reel
Product Status Not For New Designs
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 57.5 mA @ 120 Hz
Ripple Current @ High Frequency 115 mA @ 100 kHz
Impedance 1.3 Ohms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names UWF1C470MCL1GB-ND,493-9714-6,493-9714-1,493-9714-2
Standard Package 1,000
Win Source Part Number 1227567-UWF1C470MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWF1C470MCL1GB CAD Model

Description

The Nichicon UWF1C470MCL1GB is a capacitor with a capacitance of 47 μF and a voltage rating of 16V.

  • Capacitance: 47 μF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Ripple Current: 57.5 mA @ 120 Hz and 115 mA @ 100 kHz
  • Package: Tape and Reel
  • Style: Radial, Can - SMD
  • Dimensions: 0.248" Dia (6.30mm), Height: 0.217" (5.50mm)
  • Series: UWF
  • Note: Good choice for general purpose applications and is not for new designs.
