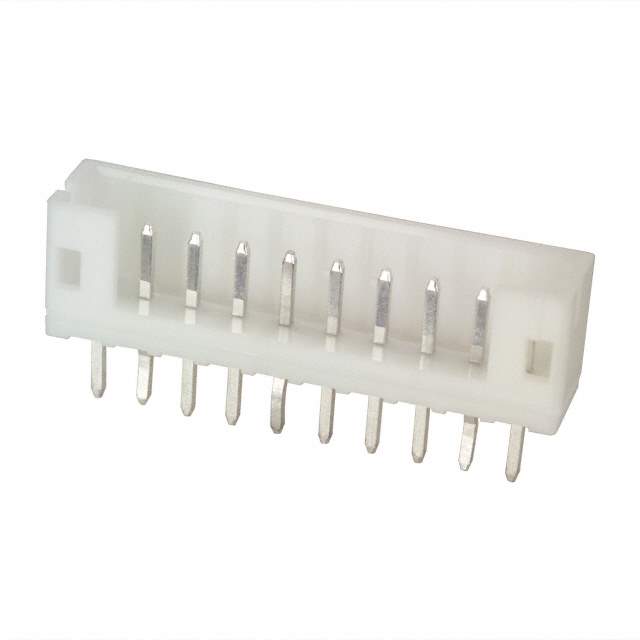

Same model may have multiple batches, images only for reference.

B10B-PH-K-S(LF)(SN)

Name: B10B-PH-K-S(LF)(SN)
Brand: JST Sales America Inc.
SKU: 435985
Availability: InStock
Rating: 4.91 (54 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B10B-PH-K-S(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER PH TOP 10POS 2MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	0.333" (8.45mm)
Insulation Height	0.236" (6.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C to 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating	2A
Voltage Rating	100V
Mated Stacking Heights	8mm
Win Source Part Number	1021324-B10B-PH-K-S(LF)(SN)
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	PH
Introduction Date	December 04, 2012
ECCN	EAR99
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian B10B-PH-K-S(LF)(SN) CAD Model

Alternative Products

Description

The 1021324-B10B-PH-K-S(LF)(SN) connector is a header connector with 10 positions.

Termination Technology: Press-Fit and Solder
Voltage Rating: 100V
Mounting: Through-Hole
Pitch: 0.079" (2.00mm)
Contact Material: Square-shaped male pins
Contact Finish: Tin
Design: Shrouded 4-Wall
Material: Polyamide (PA66) and Nylon 6/6
Temperature Range: -25°C to 85°C
