Products specifications

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 825 mA @ 120 Hz
Ripple Current @ High Frequency 1.5 A @ 100 kHz
Impedance 29 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357608-25ZLH560MEFC8X20
Ultra Librarian 3D Model Ultra Librarian 25ZLH560MEFC8X20 CAD Model

Description

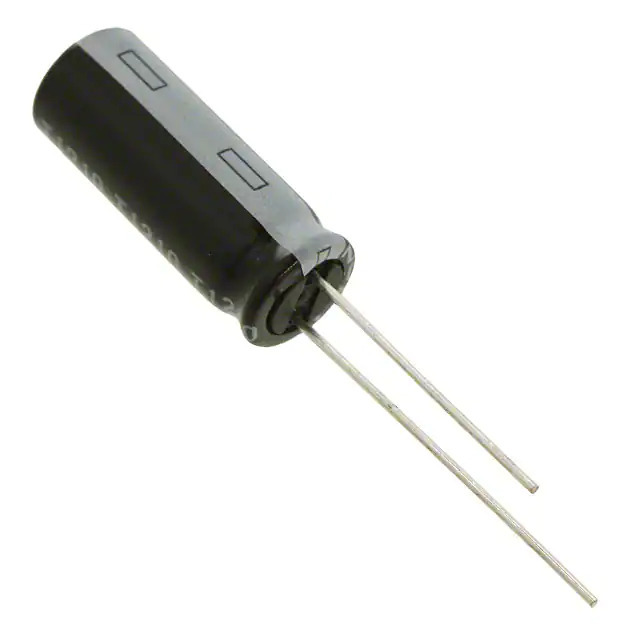

The Rubycon ZLH series aluminum electrolytic capacitor is a high-capacity capacitor designed for general-purpose applications.

  • Series: ZLH
  • Manufacturer: Rubycon
  • Capacitance: 560 μF
  • Voltage Rating: 25 V
  • Temperature Range: -40°C to 105°C
  • Mounting Type: Through-Hole
  • Diameter: 0.315"
  • Height: 0.866"
  • Lifetime: 8000 hours @ 105°C
