Same model may have multiple batches, images only for reference.

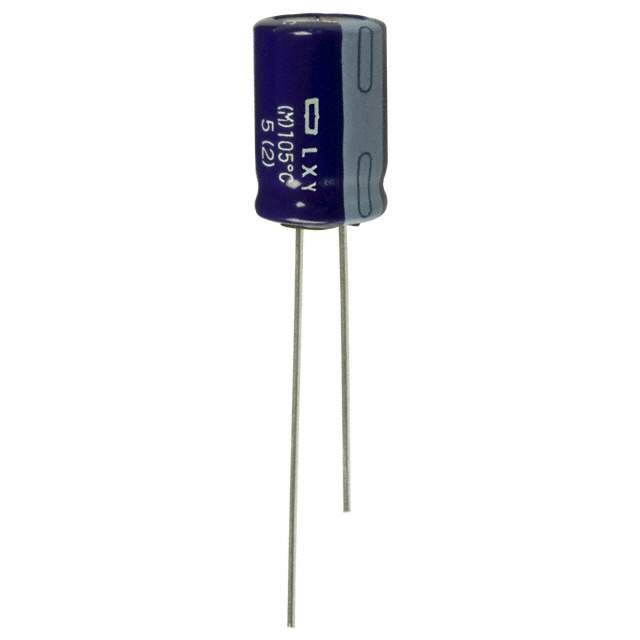

ELXY630ELL680MJ16S Real Image
Same model may have multiple batches, images only for reference.

ELXY630ELL680MJ16S

Part No ELXY630ELL680MJ16S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description Cap Aluminum Lytic 68uF 63V 20% (10 X 16mm) Radial 5mm 525mA 5000h 105°C Automotive Bulk / CAP ALUM 68UF 20% 63V RADIAL
Datasheet
ELXY630ELL680MJ16S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series LXY
Packaging Bulk
Capacitance 68μF
Tolerance ±20%
Voltage Rating DC 63V
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications Automotive
Ripple Current - Low Frequency 210mA @ 120Hz
Ripple Current - High Frequency 525mA @ 100kHz
Impedance 210 mOhm
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.689" (17.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 785119-ELXY630ELL680MJ16S
Popularity Medium
Supply and Demand Status Limited
Family Name LX
Introduction Date September 07, 2008
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ELXY630ELL680MJ16S CAD Model

Description

The United Chemi-Con LXY series capacitor is an ideal choice for automotive applications from United Chemi-Con.

  • Capacitance: 68μF
  • Voltage Rating: 63V DC
  • Polarization: Polarized
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Ripple Current: 210mA @ 120Hz, 525mA @ 100kHz
  • Impedance: 210 mOhm
  • Operating Temperature Range: -55°C ~ 105°C
  • Lifetime: 5000 Hrs @ 105°C
  • Diameter: 0.394" (10.00mm)
  • Height: 0.689" (17.50mm)
  • Packaging: Bulk
  • Family Name: LX
  • Applications: Automotive
