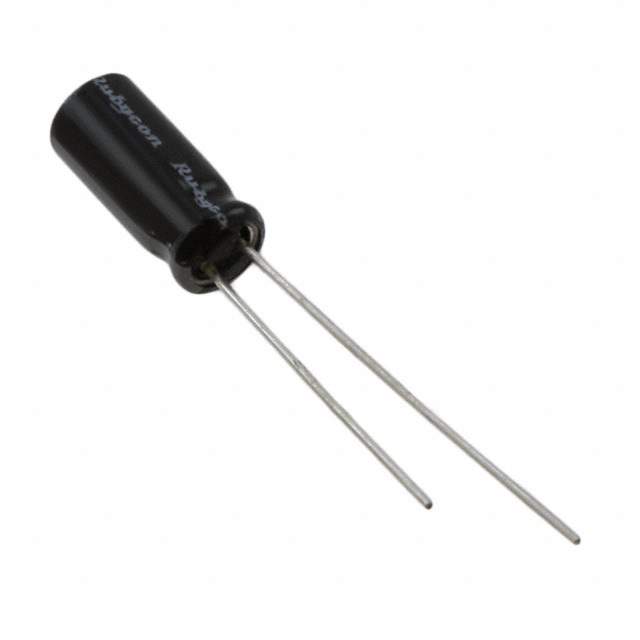

35YXJ47M5X11 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 137.5 mA @ 120 Hz
Ripple Current @ High Frequency 250 mA @ 100 kHz
Impedance 400 mOhms
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 35YXJ47M5X11-ND,1189-2919
Standard Package 3,000
Win Source Part Number 1330504-35YXJ47M5X11
Ultra Librarian 3D Model Ultra Librarian 35YXJ47M5X11 CAD Model

Description

The Rubycon 1330504-35YXJ47M5X11 is a bulk aluminum electrolytic capacitor designed for general purpose applications.

  • Application: General Purpose
  • Capacitance: 47 µF
  • Voltage Rating: 35 V
  • Mounting Style: Through-Hole
  • Lead Spacing: 0.079" (2.00mm)
  • Height (Max): 0.492" (12.50mm)
  • Diameter: 0.197" (5.00mm)
  • Tolerance: ±20%
  • Lifetime: 5000 Hrs @ 105°C
  • Polarized: Yes
  • Package: Radial, Can
  • ESR: Not Specified
  • Ripple Current @ Low Frequency: 137.5 mA @ 120 Hz
  • Ripple Current @ High Frequency: 250 mA @ 100 kHz
