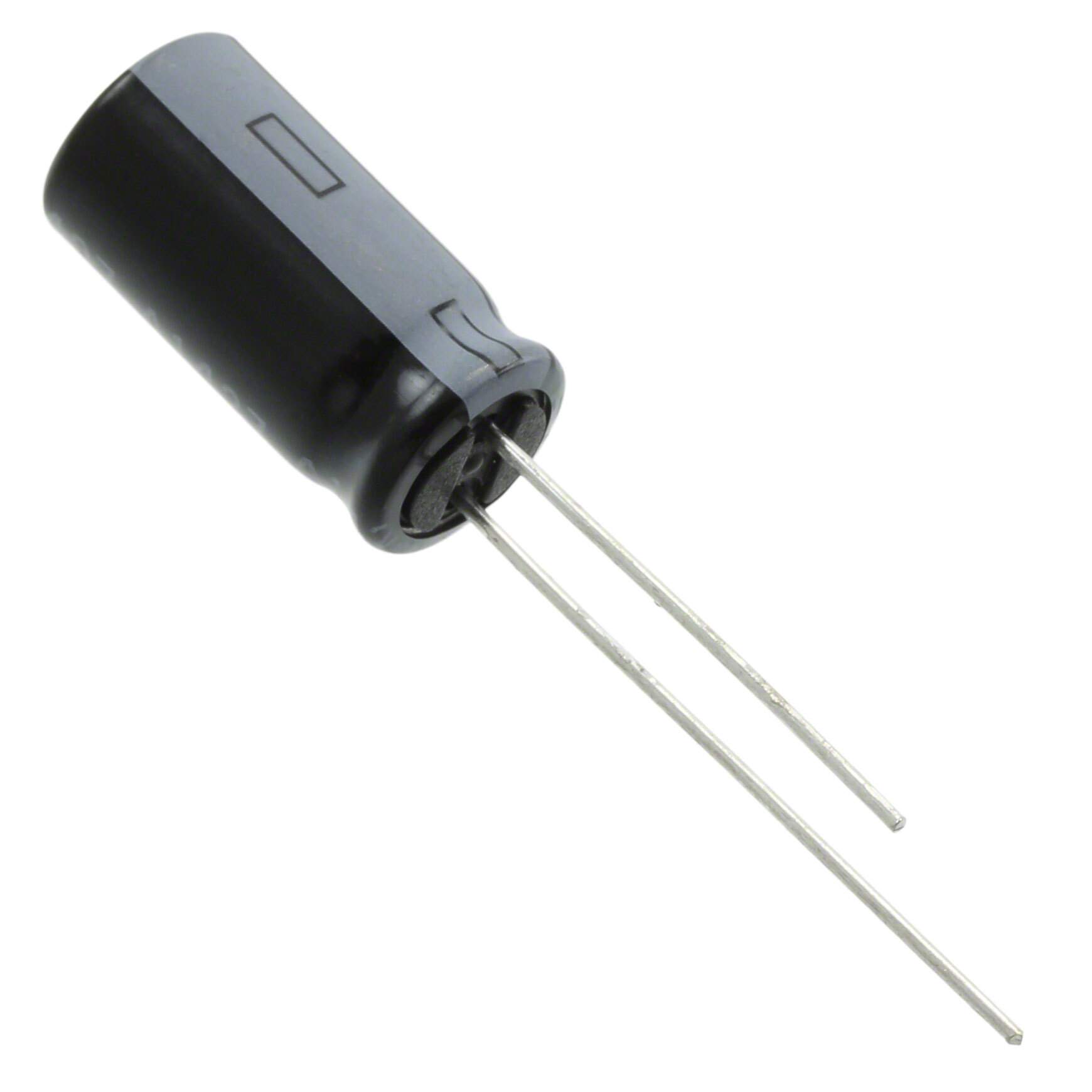

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLS
Package Bulk
Capacitance 270 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 6000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 605 mA @ 120 Hz
Ripple Current @ High Frequency 1.21 A @ 100 kHz
Impedance 48 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351768-35ZLS270MEFC8X16
Ultra Librarian 3D Model Ultra Librarian 35ZLS270MEFC8X16 CAD Model

Description

The Rubycon ZLS series capacitor is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Series: ZLS
  • Capacitance: 270 µF
  • Voltage - Rated: 35 V
  • Package / Case: Radial, Can
  • Diameter: 0.315 inches (8.00mm)
  • Height: 0.689 inches (17.50mm)
  • Tolerance: ±20%
  • Lifetime @ Temp.: 6000 hours @ 105°C
  • Polarization: Polar
  • Lead Spacing: 0.138 inches (3.50mm)
  • Impedance: 48 mOhms
  • ESR (Equivalent Series Resistance): -
  • Ripple Current: 605 mA @ 120 Hz, 1.21 A @ 100 kHz
