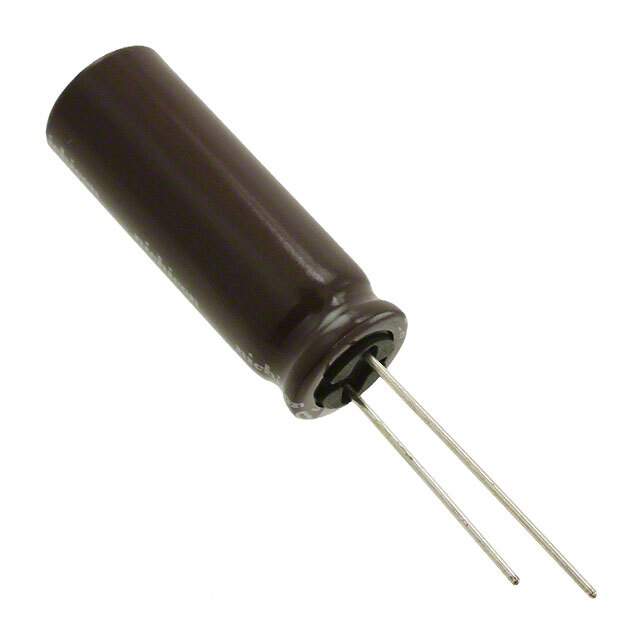

Same model may have multiple batches, images only for reference.
UPM1H221MHD6 Real Image
Same model may have multiple batches, images only for reference.

UPM1H221MHD6

Part No UPM1H221MHD6
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 50V RADIAL / Cap Aluminum Lytic 220uF 50V 20% (12.5 X 15mm) Radial 5mm 670mA 5000h 105°C Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series UPM
Packaging Bulk
Capacitance 220μF
Tolerance ±20%
Voltage Rating DC 50V
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 670mA @ 120Hz
Ripple Current - High Frequency 920mA @ 10kHz
Impedance 80 mOhm
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Maximum) 0.669" (17.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 798905-UPM1H221MHD6
Popularity Medium
Supply and Demand Status Balance
Family Name UPM
Introduction Date September 12, 2003
ECCN EAR99
Country of Origin China, Japan, Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian UPM1H221MHD6 CAD Model

Description

The Nichicon UPM1H221MHD6 is a radial, polarized can capacitor that is designed for general electronic circuits requiring high capacitance.

  • Capacitance: 220μF
  • Tolerance: ±20%
  • Ripple Current: 670mA @ 120Hz, 920mA @ 10kHz
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Temperature Range: -55°C to 105°C
  • Mounting Style: Through Hole
  • Lifetime: 5000 hours @ 105°C
  • Cross-reference: MAL204661221E3, 227KXM050M, MAL214031221E3, MAL214051221E3
