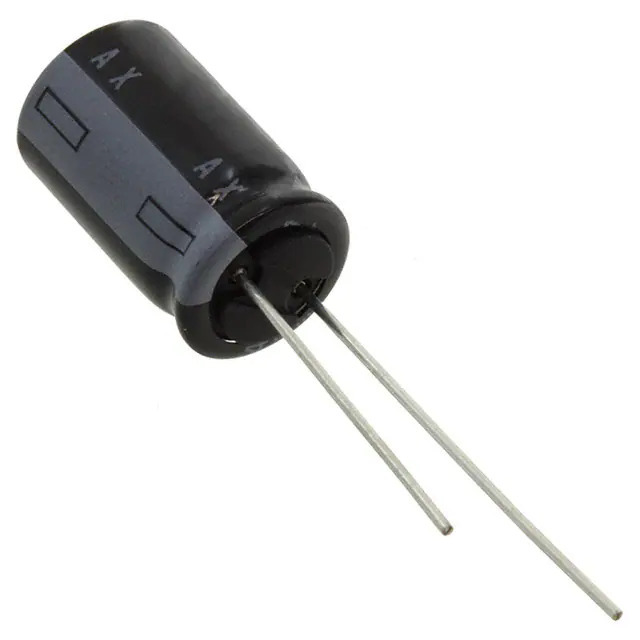

400AX15MEFCT810X16 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series AX
Package Tape & Box (TB)
Product Status Active
Capacitance 15 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 150 mA @ 120 Hz
Ripple Current @ High Frequency 225 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.709" (18.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358253-400AX15MEFCT810X16
Ultra Librarian 3D Model Ultra Librarian 400AX15MEFCT810X16 CAD Model

Description

The Rubycon AX series aluminum electrolytic capacitor is a reliable and durable component designed for general-purpose applications. With a capacitance of 15 µF and a voltage rating of 400 V, this capacitor is suitable for various electronic circuits.

  • Series: AX
  • Capacitance: 15 µF
  • Tolerance: ±20%
  • Voltage - Rated: 400 V
  • Ripple Current @ Low Frequency: 150 mA @ 120 Hz
  • Ripple Current @ High Frequency: 225 mA @ 100 kHz
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Lead Spacing: 0.197" (5.00mm)
  • Size / Dimension: 0.394" Dia (10.00mm)
  • Height - Seated (Max): 0.709" (18.00mm)
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
