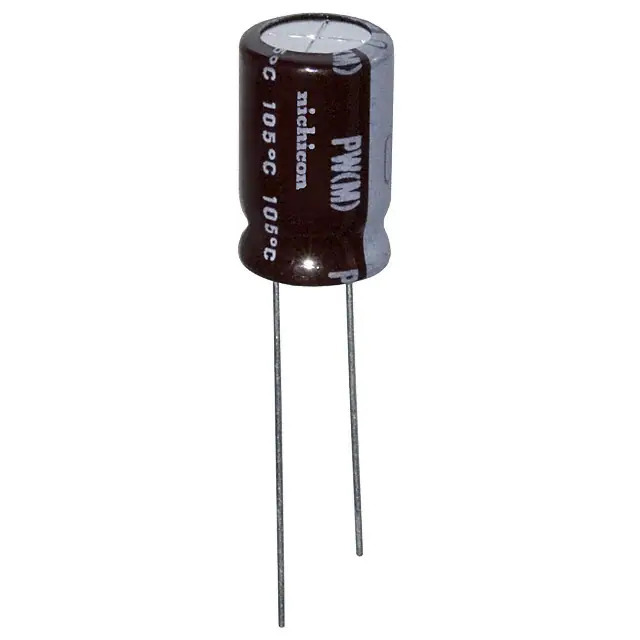

Same model may have multiple batches, images only for reference.

UPW2D100MPD

Name: UPW2D100MPD
Brand: Nichicon
SKU: 1357979
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UPW2D100MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 200V RADIAL / 10 µF 200 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UPW2D100MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Last Time Buy
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	200 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	80 mA @ 120 Hz
Ripple Current @ High Frequency	128 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.630" (16.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357979-UPW2D100MPD
Ultra Librarian 3D Model	Ultra Librarian UPW2D100MPD CAD Model

Alternative Products

Description

The UPW series from Nichicon is a range of through-hole aluminum electrolytic capacitors designed for general-purpose applications. The UPW2D100MPD is a radial can capacitor with a capacitance of 10 µF and a voltage rating of 200V.

Series: UPW
Capacitance: 10 µF
Voltage Rating: 200V
Tolerance: ±20%
ESR (Equivalent Series Resistance): N/A
Size: 0.394" in diameter
Height: 0.630"
Mounting Type: Through Hole
Lifecycle Status: Last Time Buy
