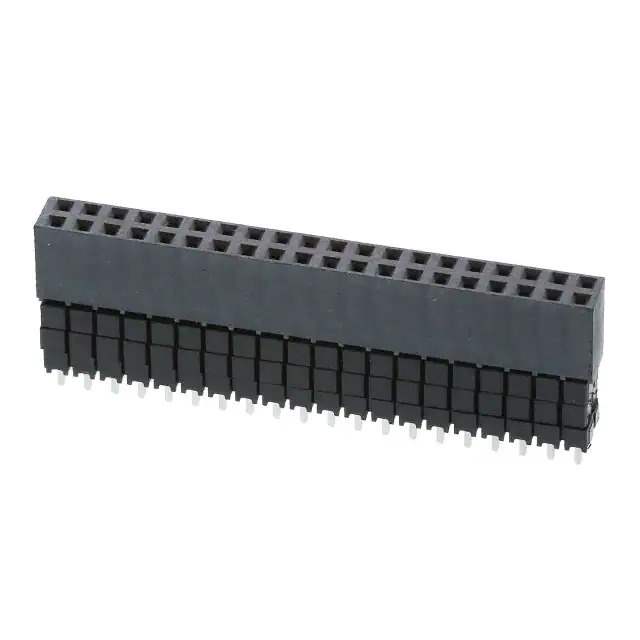

ESQ-120-33-T-D Real Image
Same model may have multiple batches, images only for reference.

ESQ-120-33-T-D

Part No ESQ-120-33-T-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN SOCKET 40POS 0.1 TIN PCB / 40 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Tin
Datasheet
ESQ-120-33-T-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series ESQ
Package Tube
Product Status Active
Connector Type Elevated Socket
Contact Type Forked
Style Board to Board
Number of Positions 40
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.635" (16.13mm)
Contact Length - Post 0.090" (2.29mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 5.7A per Contact
Voltage Rating 550VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number ESQ-120
Standard Package 11 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 918715-ESQ-120-33-T-D
Ultra Librarian 3D Model Ultra Librarian ESQ-120-33-T-D CAD Model

Description

The 918715-ESQ-120-33-T-D is a female socket header connector from Samtec Inc.

  • Category: rectangular connectors - headers, receptacles, female sockets
  • Series: ESQ
  • Positions: 40
  • Type: elevated socket connector with forked contacts
  • Loaded Positions: All positions are loaded
  • Number of Rows: 2
  • Termination: solder
  • Fastening Type: push-pull
  • Package: tube
  • Contact Material: phosphor bronze
  • Contact Finish Mating: tin
  • Insulation Material: liquid crystal polymer (LCP)
  • Insulation Color: black
  • Mounting Type: through hole
  • Temperature Range Operating: -55°C to 105°C
  • Product Status: active
