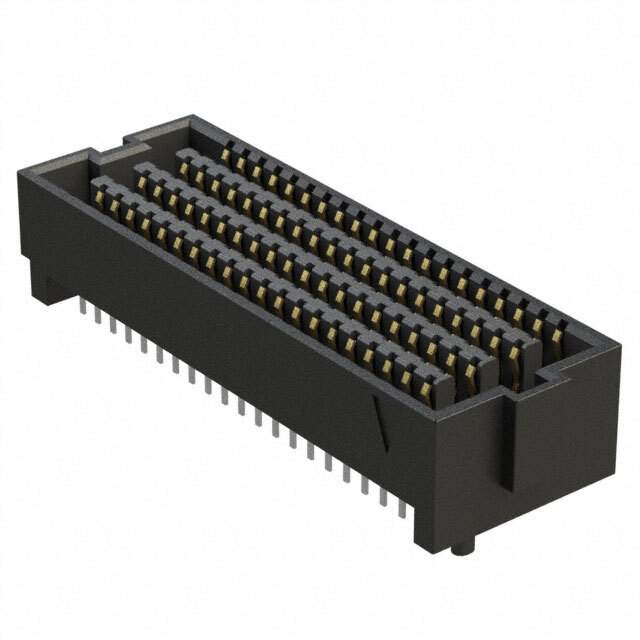

SEAF8-20-05.0-S-08-2-SPECIAL

Get a Quote

Part No	SEAF8-20-05.0-S-08-2-SPECIAL
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF8-20-05.0-S-08-2-SPECIAL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tray
Product Status	Obsolete
Connector Type	High Density Array, Female
Number of Positions	160
Pitch	0.031" (0.80mm)
Number of Rows	8
Mounting	SMD (SMT)
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 10mm
Height Above Board	0.180" (4.57mm)
Base Product Number	SEAF8-20
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293545-SEAF8-20-05.0-S-08-2-SPECIAL
Ultra Librarian 3D Model	Ultra Librarian SEAF8-20-05.0-S-08-2-SPECIAL CAD Model

Alternative Products

Description

The Samtec Inc. SEAF8-20-05.0-S-08-2-SPECIAL is a high-density array connector that features a female connector type and has 160 positions.

Connector Type: Female
Positions: 160
Pitch: 0.031 inches
Package: Tray
Applications: Mezzanine (board-to-board)
Height Above Board: 0.180 inches
Contact Finish: Gold
Contact Finish Thickness: 30.0µin
