Same model may have multiple batches, images only for reference.

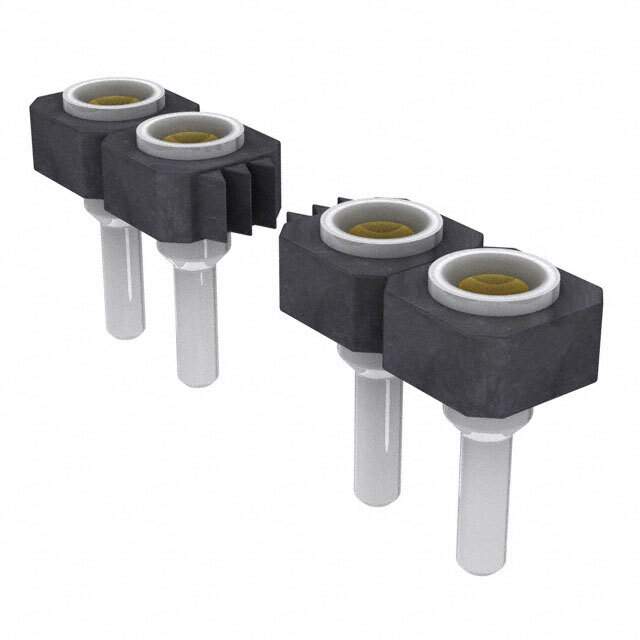

SL-118-T-12 Real Image
Same model may have multiple batches, images only for reference.

SL-118-T-12

Part No SL-118-T-12
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SL-118-T-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SL
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 18
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Contact Length - Post 0.095" (2.41mm)
Temperature Range - Operating -55°C ~ 125°C
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SL-118
Other Names SAM1107-18
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292828-SL-118-T-12
Ultra Librarian 3D Model Ultra Librarian SL-118-T-12 CAD Model

Description

The SL-118-T-12 is a rectangular connector manufactured by Samtec Inc.

  • Connector Type: Rectangular
  • Positions: 18
  • Connector Type: Receptacle
  • Contact Type: Female Sockets
  • Contact Material: Beryllium Copper
  • Contact Finish Mating: Gold
  • Mounting Style: Board to Board
  • Pitch: 0.100" (2.54mm)
  • Temperature Range: -55°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
