Same model may have multiple batches, images only for reference.

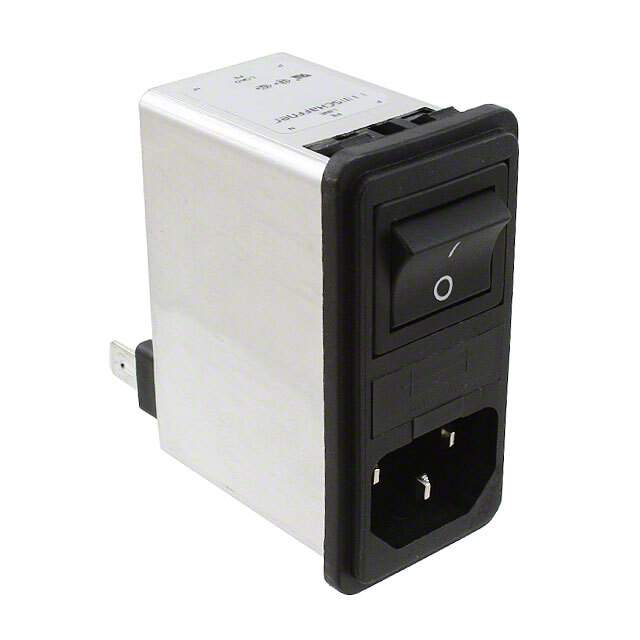

FN286-2-06 Real Image
Same model may have multiple batches, images only for reference.

FN286-2-06

Part No FN286-2-06
Manufacturer Schaffner EMC Inc.
Catalog AC Power Connectors
Description PWR ENT MOD RCPT IEC320-C14 PNL / Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
Datasheet
FN286-2-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>AC Power Connectors>Power Entry Modules (PEM)
Manufacturer Schaffner EMC Inc.
Packaging Tray
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Number of Positions 3
Filter Type Filtered (EMI, RFI) - Commercial
Current Rating - Filter 2A
Switch Features Switch On-Off
Accomodates a Fuse Yes (Fuse Not Included)
Mounting Panel Mount, Snap-In
Termination Quick Connect - 0.250" (6.3mm)
Fuse Holder, Drawer Fuse Holder, Twin Fused
Panel Cutout Dimensions Rectangular - 29.00mm x 61.50mm
Panel Thickness 0.031" ~ 0.118" (0.79mm ~ 3.00mm)
Material Flammability Rating UL94 V-2
Ingress Protection IP40
Approval Agency CQC, CSA, ENEC, UL
Base Product Number FN286
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Part Number 284-921,817-1929,800352,FN286-2-06-ND
Standard Package 40
Win Source Part Number 1334391-FN286-2-06
Ultra Librarian 3D Model Ultra Librarian FN286-2-06 CAD Model

Description

The Schaffner EMC Inc. FN286-2-06 is a power entry module with a filtered (EMI, RFI) commercial type.

  • Connector Type: receptacle, male blades - module
  • Termination Style: quick connect - 0.250" (6.3mm)
  • Filter Type: filtered (EMI, RFI) - commercial
  • Switch Feature: switch on-off
  • Fuse Holder: twin fused and accommodates a fuse
  • Mounting: panel mountable and snap-in
  • Panel Cutout Dimension: rectangular 29.00mm x 61.50mm
  • Panel Thickness: 0.031" ~ 0.118" (0.79mm ~ 3.00mm)
  • Ingress Protection: IP40
  • Material Flammability Rating: UL94 V-2
  • Packaging: tray with 40 pieces
  • ROHS3 Compliant: yes
  • ECCN: EAR99
