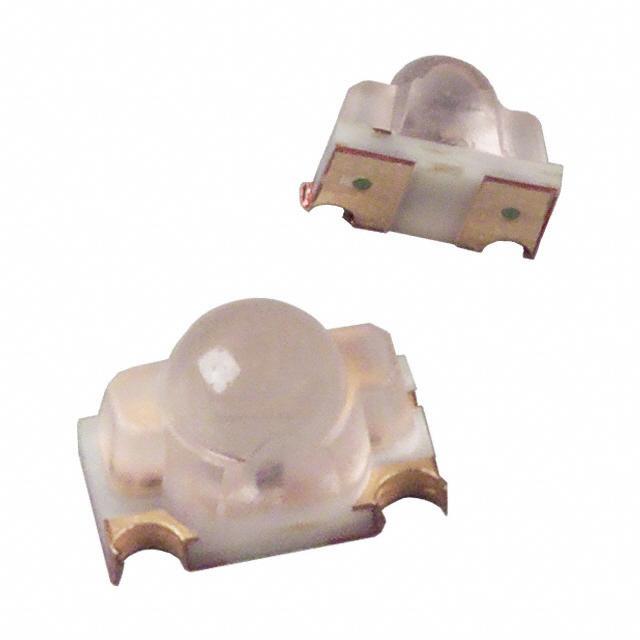

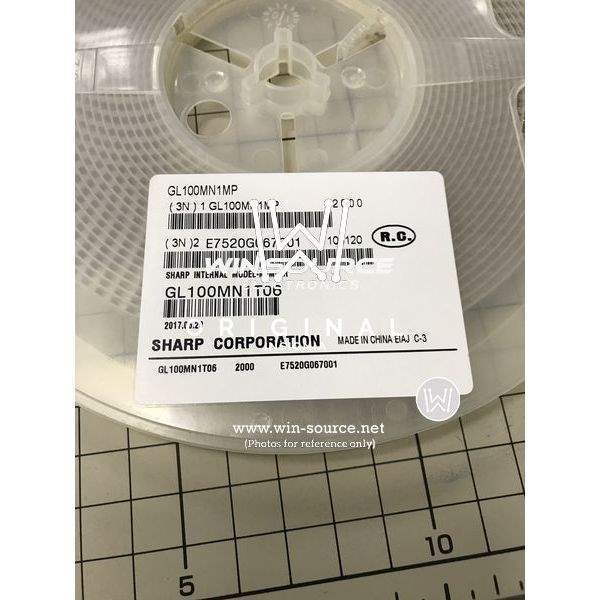

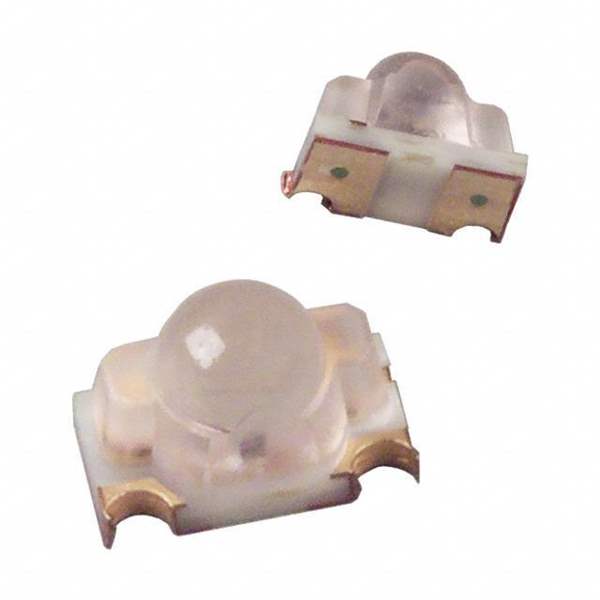

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Type Infrared (IR)
Continuous forward current- Max 50mA
Wavelength 940nm
Forward Voltage 1.2V
Viewing Angle 20°
Orientation Top View
Temperature Range - Operating -30°C to 85°C (TA)
Mounting Surface Mount, Right Angle
Dimension 2-SMD, No Lead
Win Source Part Number 36543-GL100MN1MP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name GL100MN1MP
Introduction Date January 15, 2008
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian GL100MN1MP CAD Model

Description

The GL100MN1MP from Sharp Microelectronics is an infrared (IR) electronic component.

  • Viewing Angle: 20 degrees
  • Wavelength: 940nm
  • Continuous Forward Current: 50mA
  • Forward Voltage: 1.2V
  • Mounting: Surface-Mount, Right-Angle
  • Package: 2-SMD, No Lead
  • Popularity: High
  • EOL Date: 2027 (Estimated)
  • Status: Obsolete (Not Recommended for New Designs)
  • Alternative Parts: GL100MN1MP1, GP2W0112YP0F, and GP2W0110YPSF
