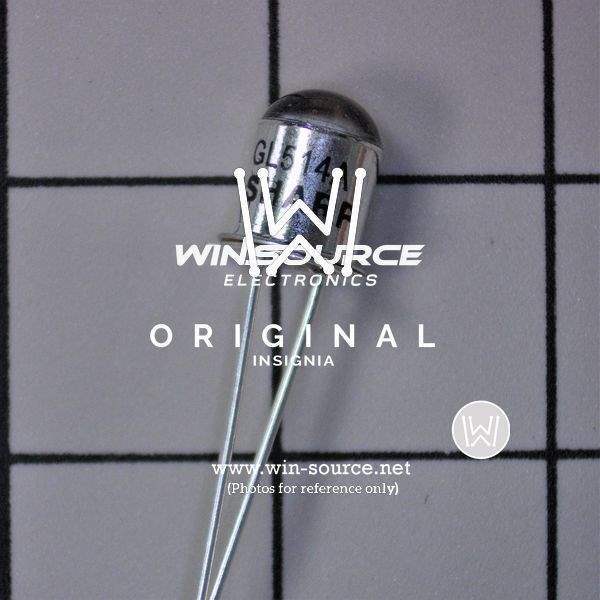

GL514A real image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Sharp Microelectronics
Packaging Bulk
Status Obsolete(EOL)
Type Infrared (IR)
Continuous forward current- Max 150mA
Wavelength 950nm
Forward Voltage 1.35V
Viewing Angle 14°
Orientation Top View
Temperature Range - Operating -40°C to 125°C (TA)
Mounting Through Hole
Dimension TO-18-2 Metal Can
Win Source Part Number 088068-GL514A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GL514A CAD Model

Description

The Sharp Microelectronics 088068-GL514A is an infrared LED that emits light at a wavelength of 950 nm with a viewing angle of 14 degrees. This LED is designed for use in remote control applications, light barriers, and optical switches. The GL514A features a compact TO-18-2 metal can package that can be mounted through hole. It requires a forward voltage of 1.35 V and can handle a continuous forward current of up to 150 mA. This LED operates over a temperature range of -40 to 125 degrees Celsius.
