Same model may have multiple batches, images only for reference.

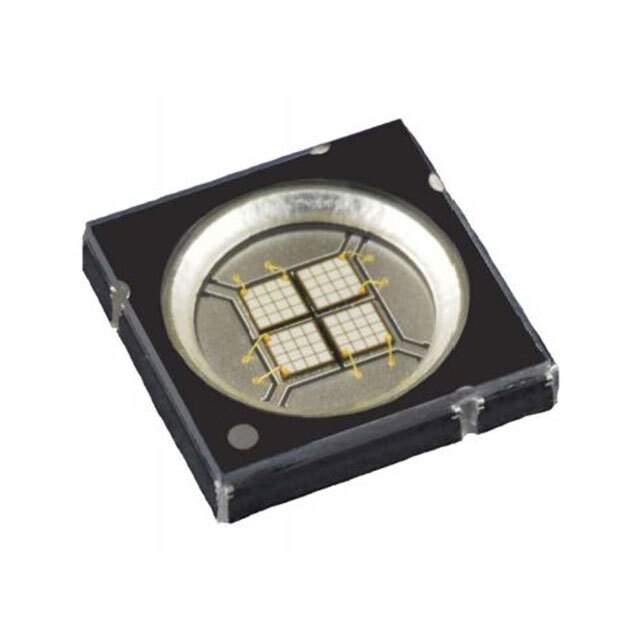

LZ1-00UV0R-0000 Real Image
Same model may have multiple batches, images only for reference.

LZ1-00UV0R-0000

Part No LZ1-00UV0R-0000
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description LUXIGEN LZ1 UV LED EMITTER / Ultraviolet (UV) Emitter 365nm 3.8V 1A 1100mW/sr @ 700mA 64° Die
Datasheet
LZ1-00UV0R-0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Series LuxiGen™ LZ1
Package Tape & Reel
Type Ultraviolet (UV)
Current - DC Forward (If) (Max) 1A
Radiant Intensity (Ie) Min @ If 1100mW/sr @ 700mA
Wavelength 365nm
Voltage - Forward (Vf) (Typ) 3.8V
Viewing Angle 64°
Orientation Top View
Temperature Range - Operating 70°C (TJ)
Mounting Type Surface Mount
Package / Case Die
Base Product Number LZ1-00
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1350247-LZ1-00UV0R-0000
Ultra Librarian 3D Model Ultra Librarian LZ1-00UV0R-0000 CAD Model

Description

The LuxiGen LZ1 is an ultraviolet (UV) LED emitter that comes in a tape and reel package.

  • Viewing Angle: 64 degrees
  • Wavelength: 365nm
  • Mounting Type: Surface Mount
  • Package/Case: Die
  • Voltage-Forward (Vf) (Typ): 3.8V
  • Current-DC Forward (If) (Max): 1A
  • Radiant Intensity (Ie) Min @ If: 1100mW/sr @ 700mA
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.41.0000
  • Manufacturer: ams-OSRAM USA Inc.
