Same model may have multiple batches, images only for reference.

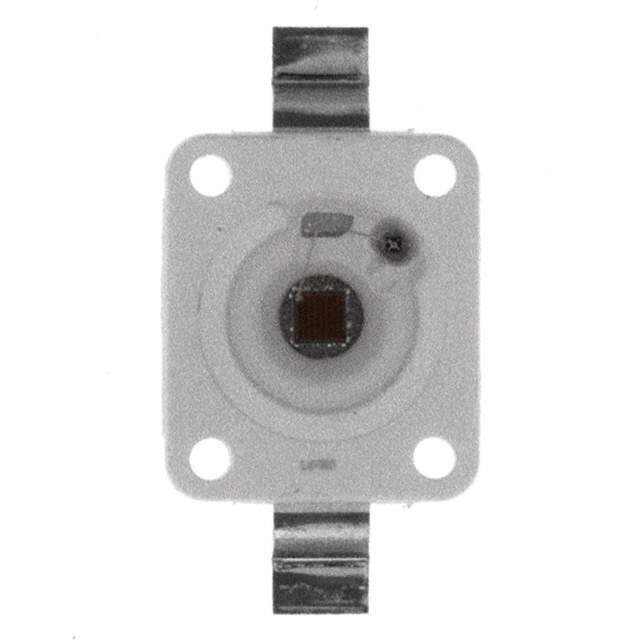

LA W5SN-JZKZ-24-0-700-R18-Z Real Image
Same model may have multiple batches, images only for reference.

LA W5SN-JZKZ-24-0-700-R18-Z

Part No LA W5SN-JZKZ-24-0-700-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - Color
Datasheet
LA W5SN-JZKZ-24-0-700-R18-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Mfr ams-OSRAM USA Inc.
Series Platinum DRAGON
Package Tape & Reel
Product Status Obsolete
Color Amber
Wavelength 618nm (612nm ~ 624nm)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.5V
Lumens/Watt @ Current - Test 50 lm/W
Current - Max 1A
Luminous Flux @ Current/Temperature 87lm (61lm ~ 112lm)
Temperature - Test 25°C
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2-SMD, Gull Wing
Dimension 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) 0.075" (1.90mm)
Thermal Resistance of Package 6.5°C/W
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1315416-LA W5SN-JZKZ-24-0-700-R18-Z
Ultra Librarian 3D Model Ultra Librarian LA W5SN-JZKZ-24-0-700-R18-Z CAD Model

Description

The ams-OSRAM USA Inc. Platinum DRAGON Amber LED Lighting-Color is a surface-mount device with a viewing angle of 120 degrees.

  • Mounting: surface-mount
  • Viewing Angle: 120 degrees
  • Height: 1.90mm
  • Dimension: 7.00mm x 6.00mm
  • Maximum Current: 1A
  • Forward Voltage: 2.5V
  • Package Type: tape and reel
  • Thermal Resistance: 6.5 degrees Celsius per watt
  • Wavelength: 618nm
  • Luminous Flux: 87lm @ a current of 700mA and a temperature of 25 degrees Celsius
  • Status: obsolete
