Same model may have multiple batches, images only for reference.

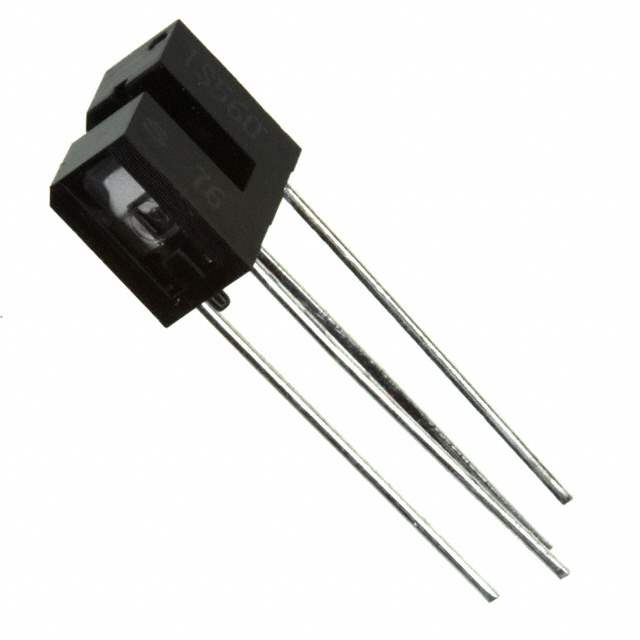

GP1S560J000F Real Image
Same model may have multiple batches, images only for reference.

GP1S560J000F

Part No GP1S560J000F
Manufacturer Sharp Microelectronics
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENSOR OPTO SLOT 2MM TRANS THRU
Datasheet
GP1S560J000F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Sensing Distance 0.079" (2mm)
Sensing Method Transmissive
Continuous forward current- Max 50mA
Maximum Current Collector 20mA
VCEO Maximum Collector-Emitter Breakdown Voltage 35V
Response Time 38μs, 48μs
Temperature Range - Operating -25°C to 85°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 204463-GP1S560J000F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GP1S560J000F CAD Model

Description

The Sharp Microelectronics GP1S560J000F is a sensor/transducer product with a transmissive sensing method.

  • Sensing Distance: 0.079" (2mm)
  • Maximum Current Collector: 20mA
  • Supply and Demand Status: Balanced
