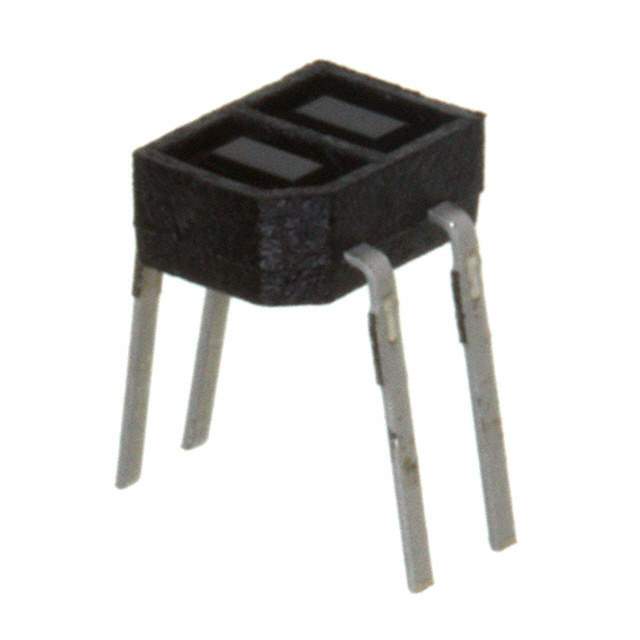

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Tube
Part Status Obsolete(EOL)
Sensing Distance 0.028" (0.7mm)
Sensing Method Reflective
Voltage - Collector Emitter Breakdown (Maximum) 35V
Current - Collector (Ic) (Maximum) 20mA
Current - DC Forward (If) (Maximum) 50mA
Output Type Phototransistor
Response Time 20μs, 20μs
Mounting Style Through Hole
Package PCB Mount
Operating Temperature Range -25°C ~ 85°C
Win Source Part Number 1177525-GP2S24CJ000F
Manufacturer Homepage sharp-world.com/
Family Name GP2S24
Introduction Date March 28, 2006
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian GP2S24CJ000F CAD Model

Description

This is a reflective phototransistor sensor from the GP2S24 series by Sharp Microelectronics.

  • Sensing Distance: 0.028" (0.7mm)
  • Operating Temperature Range: -25°C to 85°C
  • Output Type: Phototransistor
  • Response Time: 20μs
  • Current - DC Forward (If) (Maximum): 50mA
  • Current - Collector (Ic) (Maximum): 20mA
  • Voltage - Collector Emitter Breakdown (Maximum): 35V
  • Suitable for: Applications that require reflective sensing with a small sensing distance
